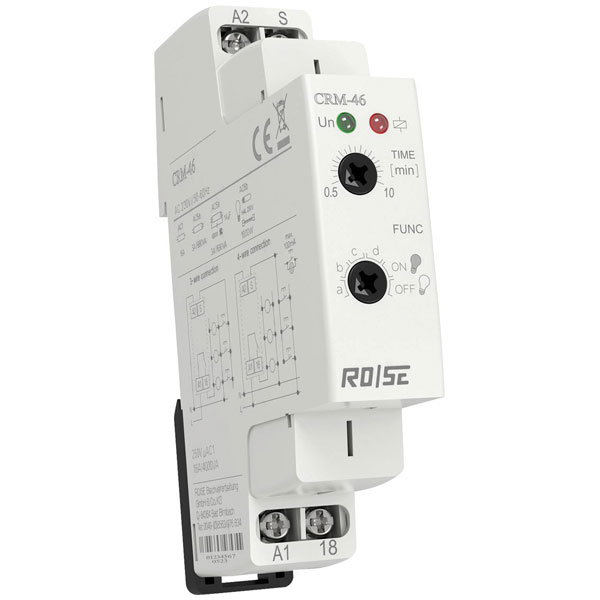

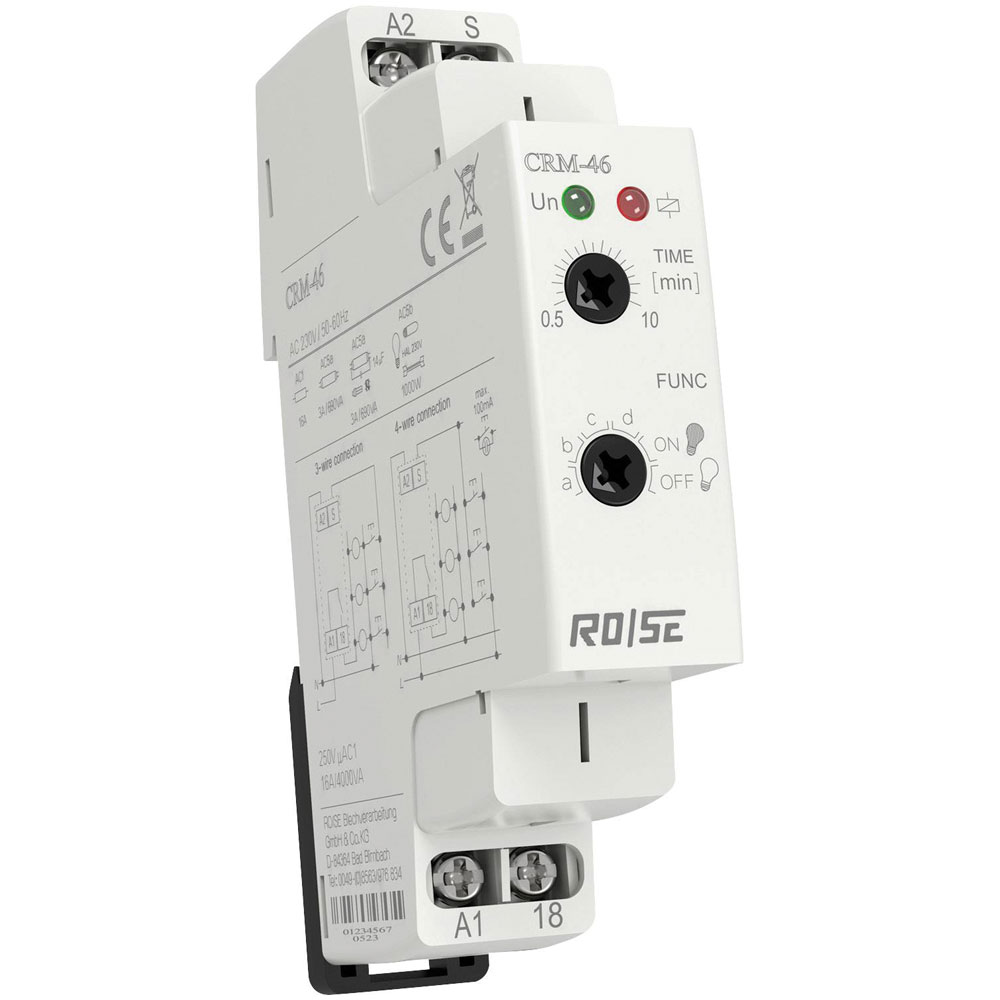

Rose LM CRM-4/230 Staircase Multiway Switch, 230V AC, 0.5-10 min Timer

The Rose LM CRM-4/230 Staircase multiway switch is a multifunction relay designed for 230 V AC applications, offering a time range from 0.5 to 10 minutes. This rail mount relay is typically used for controlling staircase lighting systems, providing a time delay switch function to ensure energy efficiency. The product features a 1 change-over contact, making it suitable for various lighting control scenarios.

Type	Staircase multiway switch
Connection	Screw terminal
Contact Configuration	1 change-over
Depth	64mm
Dim	(W x H x D) 17.6 x 90 x 64 mm
Height	90mm
IP Rating	IP40 (Front), IP20 (terminals)
Maximum Temperature	+55°C
Min. temperature	-20°C
Operating Voltage	230V AC
Switching current (max.)	16A
Time range (max.)	10min
Time range (min.)	0.5min
Width	17.6mm
