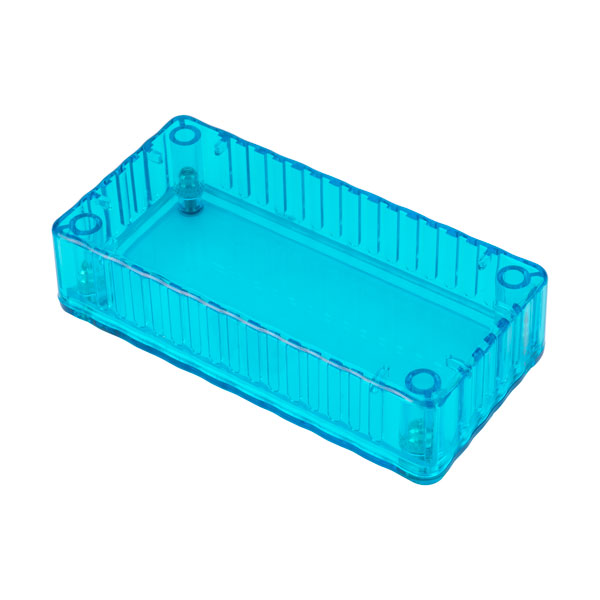

This electronic instrument enclosure is constructed from polycarbonate material and has a translucent blue colour. The box is almost totally transparent to blue, white and near white LEDs, readouts & displays.
The project box is ideally suited for applications where internal components need to be visible, such as electronic projects, test equipment cases, display cases, cases for SBCs.
- Dimensions 100 x 50 x 25mm
- Translucent blue RAL
- Lap-joint construction provides protection against ingress of dust and water
- Lids are secured by four ⊕M3 x 10 Philips machine screws fitting into internal threaded brass bushings
- Internal guide slots for mounting 1.5mm PCBs
- Bosses with threaded brass inserts in base for horizontal mounting of PCBs or terminals
- Wall thickness 3.05mm
- Weight 50g
- Temperature range -40°C to +120°C
- Designed to meet IP54
- Flame resistance rating UL94-V2
The project box is ideally suited for applications where internal components need to be visible, such as electronic projects, test equipment cases, display cases, cases for SBCs. Tough polycarbonate construction has good UV stability so suits applications exposed to sunlight.
| Colour |
Translucent blue |
| Enclosure Height |
25mm |
| Enclosure Length |
100mm |
| Enclosure Width |
50mm |
| Internal Features |
PCB mounting |
| Material |
Polycarbonate |
| Finish |
Gloss |
| Flame Resistance |
UL94-V2 |
| IP rating |
IP54 |
| Type |
General purpose polycarbonate |
