R-TECH 524331 Polycarbonate Enclosure 222 x 146 x 55 Grey

R-TECH
Standard range
Order Code:

52-4331

Brand: R-TECH MPN: 524331 EAN-13: 5053556004898
Qty Unit Price (Ex VAT)
1+ £14.74
5+ £13.72
10+ £12.59
20+ £12.20
40+ £12.00
75+ £11.83
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
36 in stock, despatched same dayAdditional quantity lead time 5 months

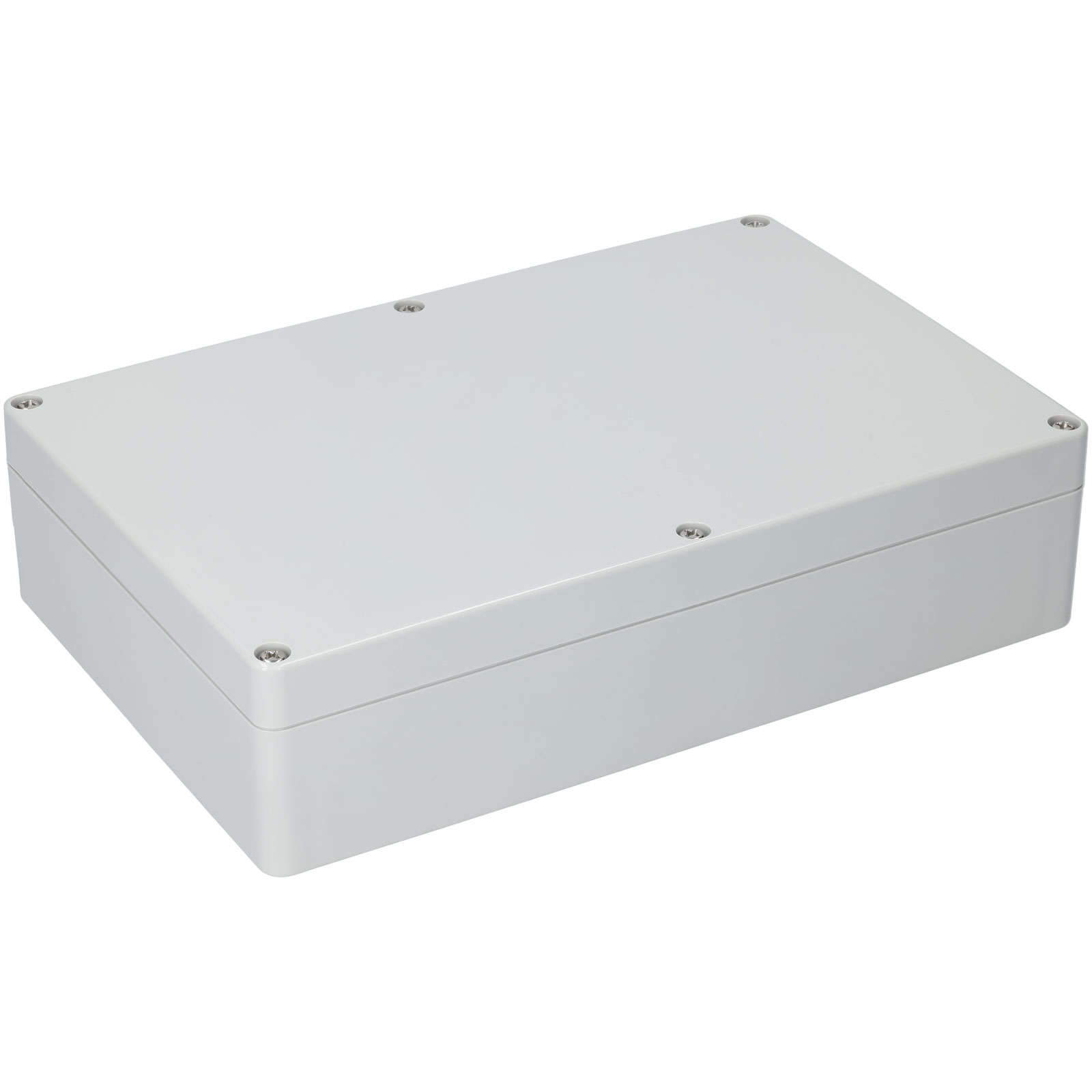

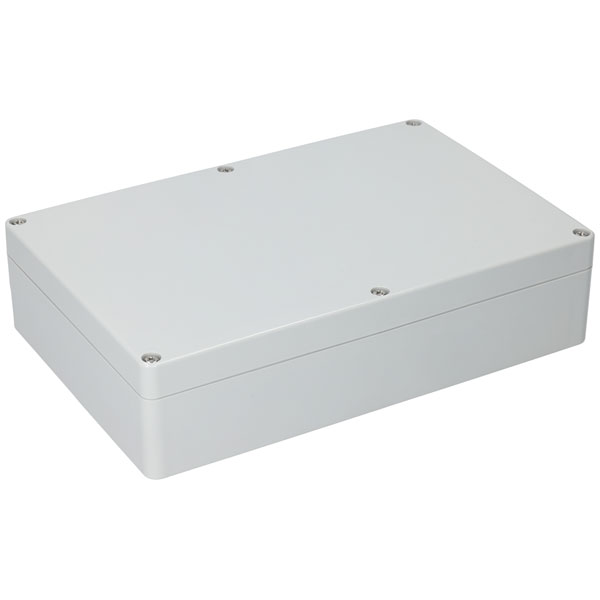

A light grey polycarbonate box with a tongue-and-groove sealing system plus neoprene gasket.

This general purpose enclosure is designed for a variety of applications, including electronic projects. Designed to meet IP65 to protect against dust ingress and water spray. Excellent UV stability so ideal for outdoor applications.


  • Tough and robust Polycarbonate construction
  • Dimensions 222 x 146 x 55mm
  • Grey RAL 7035
  • Non-magnetic lid fixings ⊕4x 20mm
  • Mounting holes and fixings are outside sealed area preventing ingress of dust and moisture
  • Internal guide slots for mounting PCBs vertically
  • Bosses with threaded brass inserts in base for horizontal mounting of PCBs or terminals
  • Temperature range -40 to +120°C
  • Flame resistance rating UL94-HB
Colour Light grey, RAL 7035
Enclosure Height 55mm
Enclosure Length 222mm
Enclosure Width 146mm
External Features Sealed lid
Internal Features PCB mounting
Material Polycarbonate
Finish Gloss
Flame Resistance UL94-HB
IP rating IP65
Type General purpose polycarbonate
