R-TECH 524328 Polycarbonate Enclosure 171 x 121 x 55 Grey

R-TECH
Order Code:

52-4328

Brand: R-TECH MPN: 524328 EAN-13: 5053556004867
Qty Unit Price (Ex VAT)
1+ £9.69
5+ £9.02
10+ £8.29
20+ £8.02
40+ £7.91
75+ £7.77
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
100 in stock, despatched same dayAdditional quantity lead time 5 months

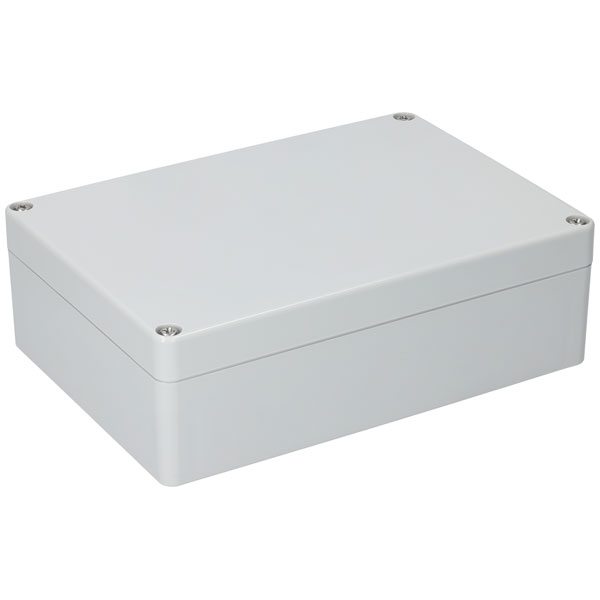

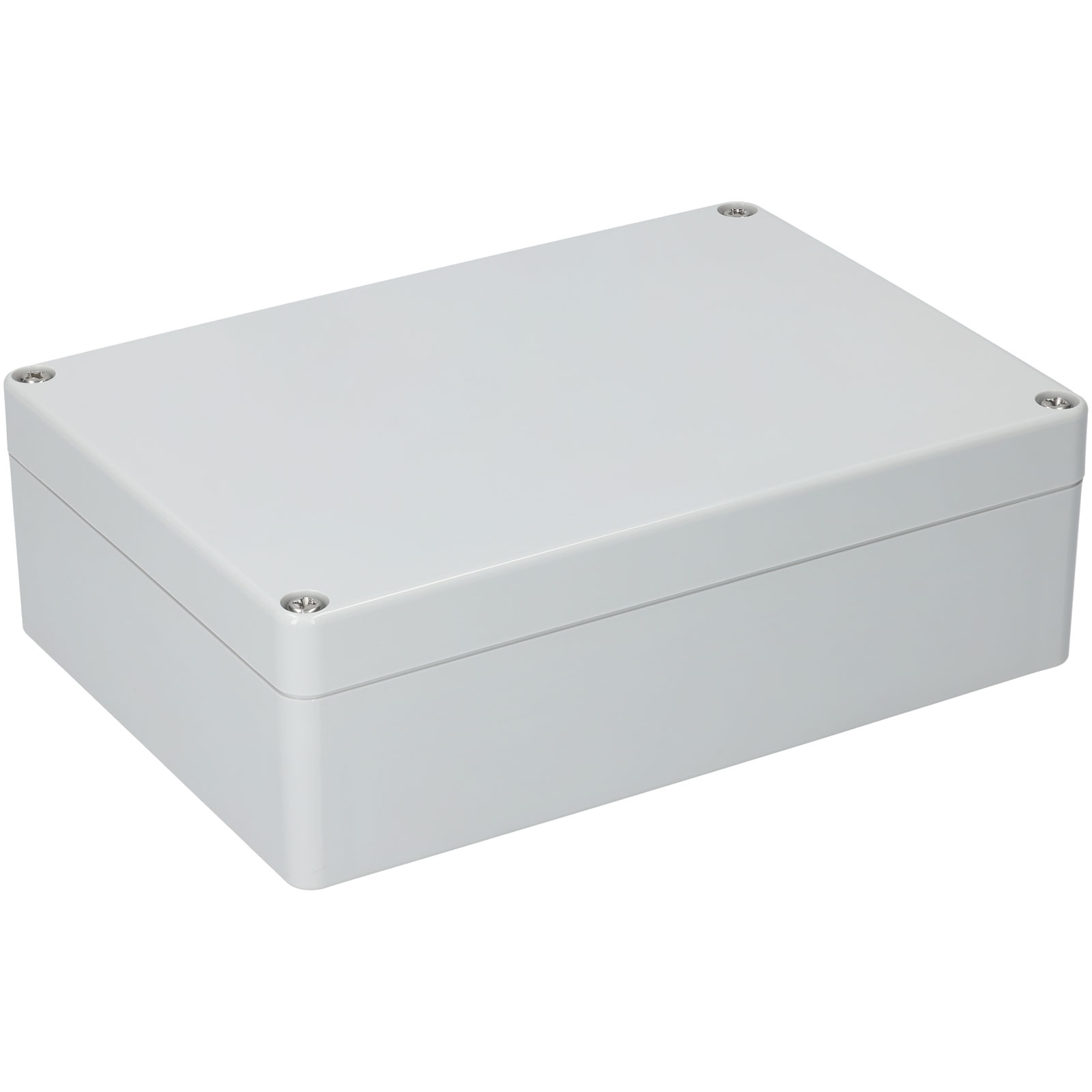

A light grey polycarbonate box with a tongue-and-groove sealing system plus neoprene gasket.

This general purpose enclosure is designed for a variety of applications, including electronic projects. Designed to meet IP65 to protect against dust ingress and water spray. Excellent UV stability so ideal for outdoor applications.


  • Tough and robust Polycarbonate construction
  • Dimensions 171 x 121 x 55mm
  • Grey RAL 7035
  • Non-magnetic lid fixings ⊕4x 20mm
  • Mounting holes and fixings are outside sealed area preventing ingress of dust and moisture
  • Internal guide slots for mounting PCBs vertically
  • Bosses with threaded brass inserts in base for horizontal mounting of PCBs or terminals
  • Temperature range -40 to +120°C
  • Flame resistance rating UL94-HB
Type General purpose polycarbonate
Material Polycarbonate
Enclosure Length 171mm
Enclosure Width 121mm
Enclosure Height 55mm
Colour Light grey, RAL 7035
Internal Features PCB mounting
External Features Sealed lid
Finish Gloss
Flame Resistance UL94-HB
IP Rating IP65
