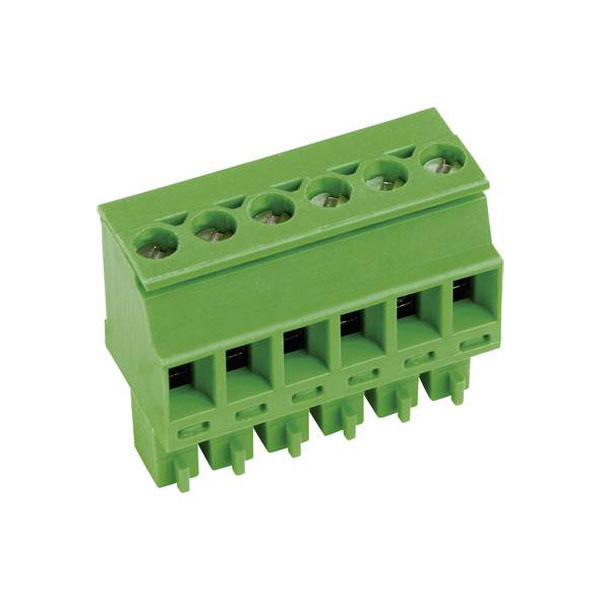

PTR Hartmann 51700060001E AK(Z)1700 Socket Housing 6 Pins 3.50 mm Spacing

Image Representative of Range

PTR Hartmann 51700060001E AK(Z)1700 Socket Housing 6 Pins 3.50 mm Spacing

PTR
Order Code:

06-2892

Brand: PTR MPN: 51700060001E EAN-13: 2050001582881
Qty Unit Price (Ex VAT)
5+ £1.28
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
52 in stock, despatched in 4 working days

Manufactured by PTR Hartmann, this socket housing cable features six pins with a contact spacing of 3.50 mm. The type AK1700/6-3.5-GRÜN is suitable for secure and reliable electrical connections. It's typically used in electronic and electrical systems where compact and stable connectors are required.
Type Socket housing cable
Number of Positions 6
Number of Rows 6
Contact Plating Tin plated
AWG (min.) 28
AWG max. 16
Case Material PA 6.6
Colour Green
Cross Section 1.50mm²
Dimensions (L x W x H) 10.40 x 21.00 x 19.10 mm
Height 19.10mm
Industrial packaging No
Length 10.40mm
Max. temperature +105°C
Min. cross section 0.14mm²
Min. temperature -30°C
Nominal Current 8A
Nominal Voltage 300V
Series AK(Z)1700
Stripping length (max.) 7.00mm
Width 21.00mm
