PTR Hartmann 51700020001F Socket 2 Pins 3.5mm Spacing Housing Cable AK(Z)1700

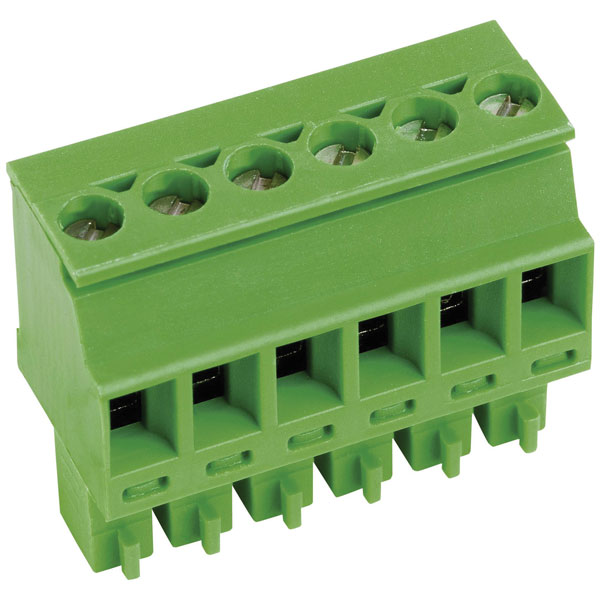

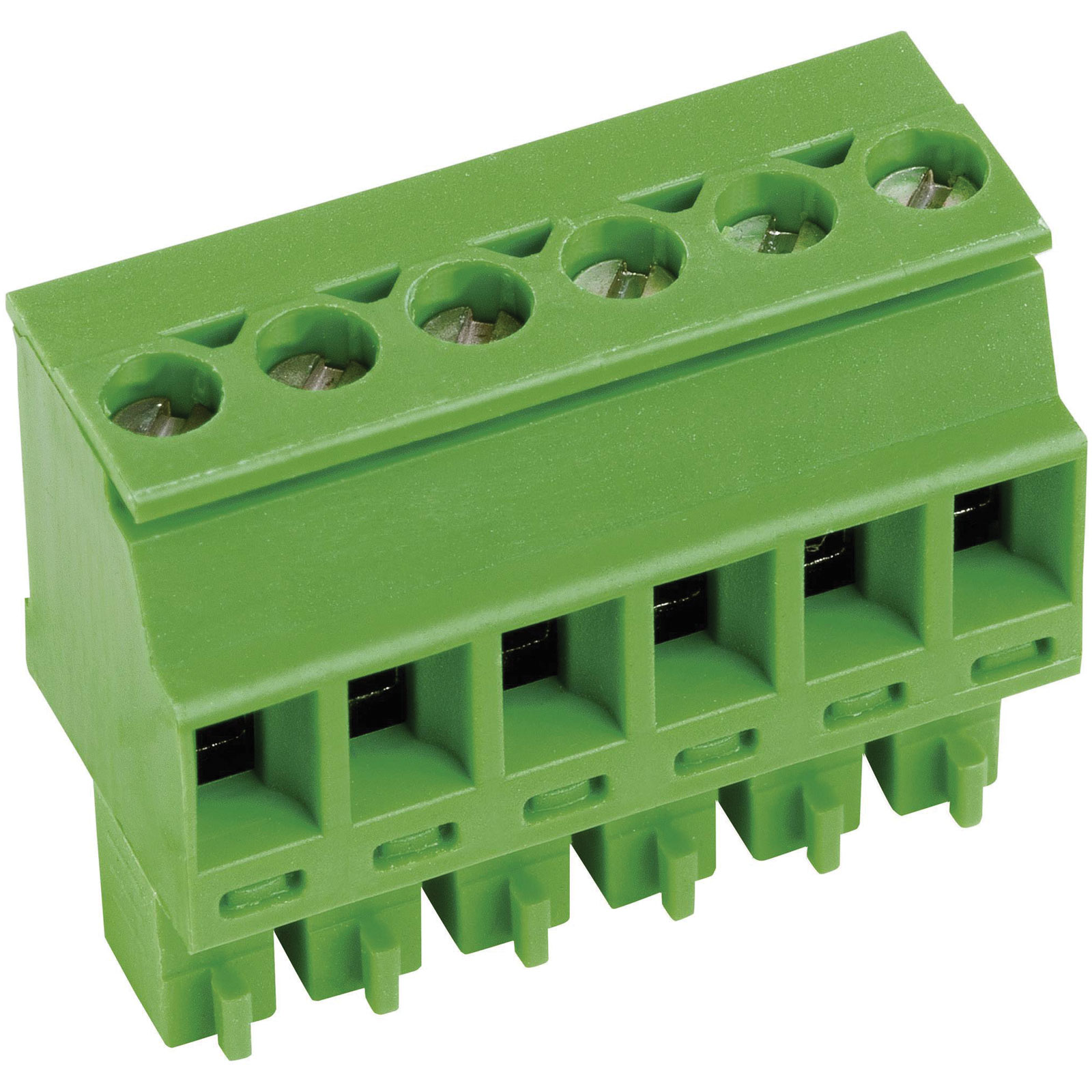

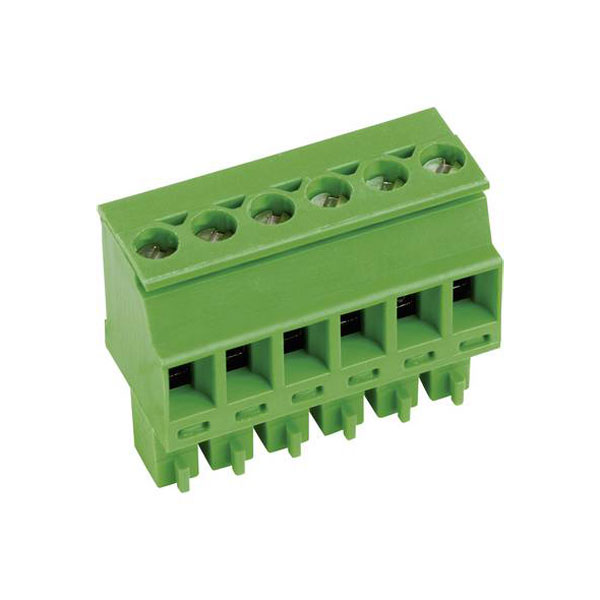

Image Representative of Range

PTR Hartmann 51700020001F Socket 2 Pins 3.5mm Spacing Housing Cable AK(Z)1700

PTR
Standard range
Order Code:

06-2888

Brand: PTR MPN: 51700020001F
Qty Unit Price (Ex VAT)
1+ £0.477
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
200 in stock, despatched in 4 working days

PTR Hartmann manufactures the socket housing cable AK1700, featuring two pins with a contact spacing of 3.50 mm. This product is often used in electronic connections where compact and reliable interconnect solutions are needed. Its typical applications include use in control systems and electrical wiring setups.
Type Socket housing cable
AWG (min.) 28
AWG max. 16
Case material PA 6.6
Connector contact surface Tin plated
Connector system wire-to-board
Connector type Socket, straight
Contact material Copper alloy
CS 3.50mm
Dim (L x W x H) 7.00 x 19.10 x 10.40 mm
Factory colour Green
Height 10.40mm
Industrial packaging No
Length 7.00mm
Manufacturer part # 51700020001F
max. cross section 1.50mm²
Max. temperature +105°C
Min. cross section 0.14mm²
Min. temperature -30°C
Misc Attribute AK1700/2-3.5-GRÜN
No. of rows 1
Nominal current 8A
Nominal current - rounded value 8A
Nominal voltage 300V
Pins per row 2
RoHS-compliant Yes
Series AK(Z)1700
Stripping length (max.) 7.00mm
Total number of pins 2
Width 19.10mm
