PTR Hartmann 51100100021D Socket Housing 10 Pins 5 mm Spacing 1pc

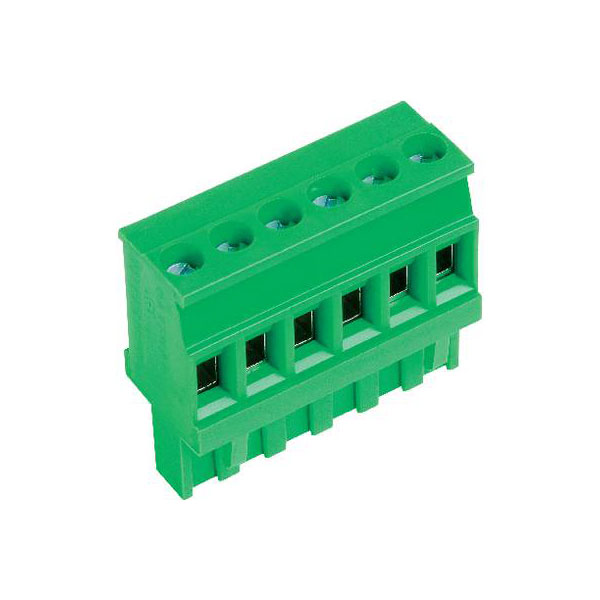

Image Representative of Range

PTR Hartmann 51100100021D Socket Housing 10 Pins 5 mm Spacing 1pc

PTR
Standard range
Order Code:

06-2864

Brand: PTR MPN: 51100100021D
Qty Unit Price (Ex VAT)
1+ £1.71
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
27 in stock, despatched in 4 working days

PTR Hartmann manufactures the socket housing cable AK1100/10-5.0-GRÜN, featuring 10 pins and 5 mm contact spacing. It is ideal for secure and organised electrical connections in various applications. The component is typically used in electronic circuits where reliable connectivity is crucial.
Type Socket housing cable
AWG (min.) 22
AWG max. 10
Case material PA 6.6
Connector contact surface Tin plated
Connector system wire-to-board
Connector type Socket, straight
Contact material Copper alloy
CS 5mm
Dim (L x W x H) 12.50 x 50.00 x 26.50 mm
Factory colour Green
Height 26.50mm
Industrial packaging No
Length 12.50mm
Manufacturer part # 51100100021D
max. cross section 4.00mm²
Max. temperature +105°C
Min. cross section 0.20mm²
Min. temperature -30°C
Misc Attribute AK1100/10-5.0-GRÜN
No. of rows 1
Nominal current 15A
Nominal current - rounded value 15A
Nominal voltage 300V
Pins per row 10
RoHS-compliant Yes
Series AK(Z)1100
Stripping length (max.) 7.00mm
Total number of pins 10
Width 50.00mm
