PTR Hartmann 50950127028D AK(Z)950 Socket Housing 12 Pins 5.08mm Spacing

Standard range

Order Code:

06-2846

Brand: PTR MPN: 50950127028D

RoHS Compliant
Country of Origin:
Free UK shipping available
View Full Product Range (9)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£2.98

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

128 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

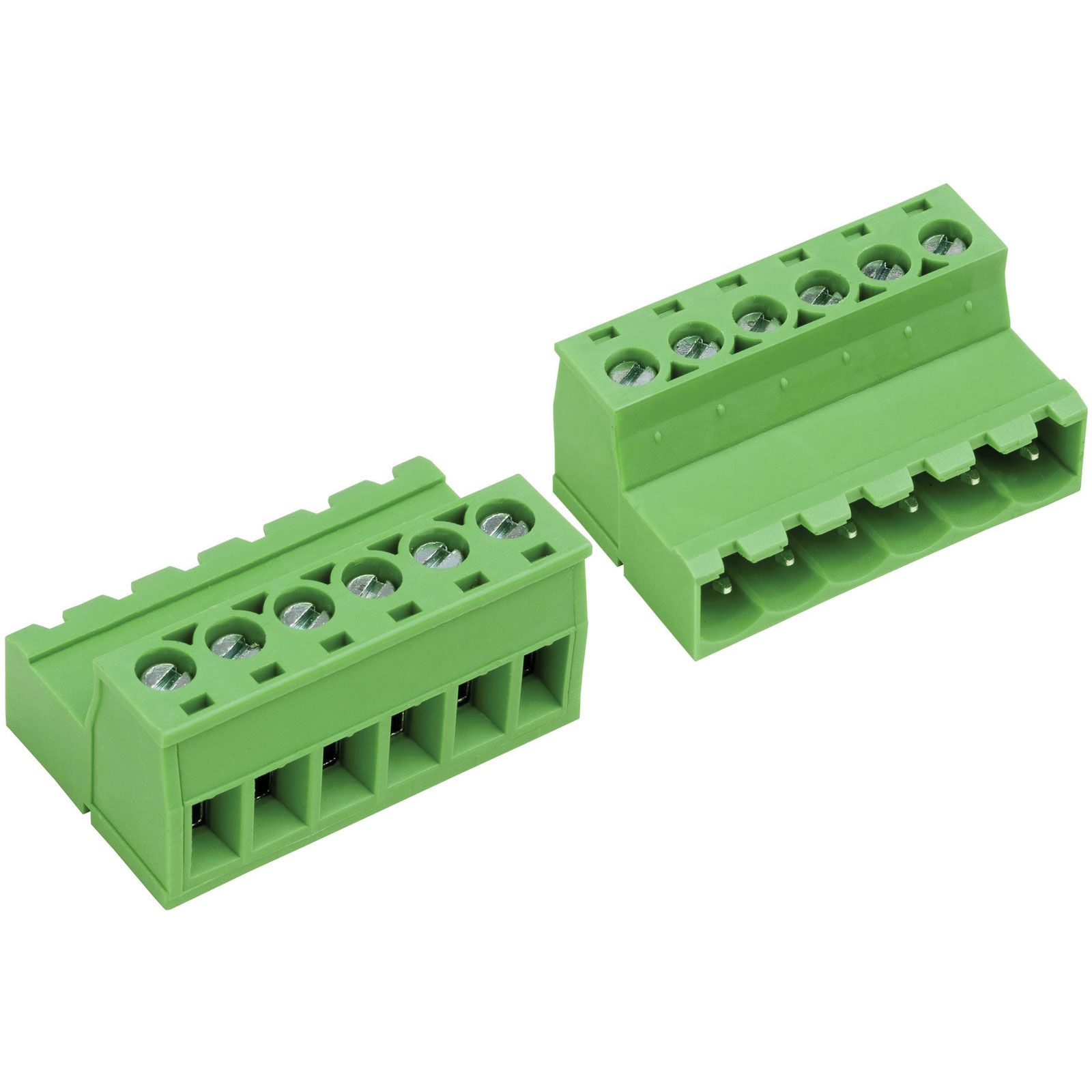

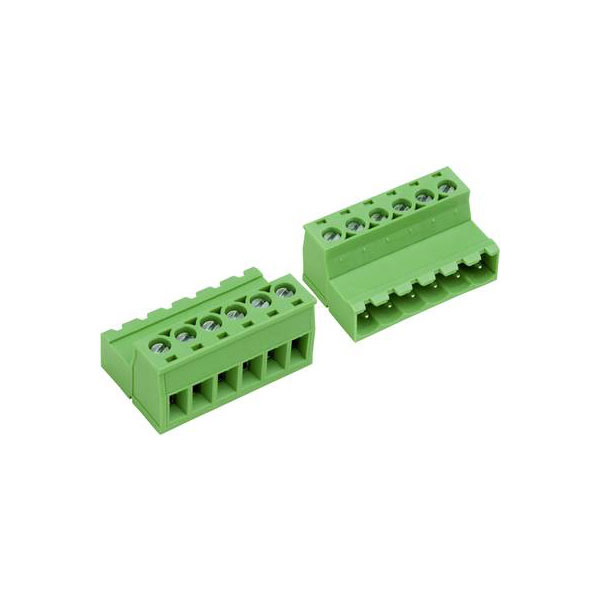

PTR Hartmann manufactures the socket housing cable AK(Z)950, which features a total of 12 pins with a contact spacing of 5.08 mm. This component is ideal for creating secure electrical connections in a variety of electronic devices and systems. It is often used in applications requiring reliable connectivity and durable housing.

Type	Socket housing cable
AWG (min.)	28
AWG max.	12
Case material	PA 6.6
Connector contact surface	Tin plated
Connector system	wire-to-board
Connector type	Socket, straight
Contact material	Copper alloy
CS	5.08mm
Dim	(L x W x H) 15.00 x 62.50 x 19.20 mm
Factory colour	Green
Height	19.20mm
Industrial packaging	No
Length	15.00mm
Manufacturer part #	50950127028D
max. cross section	4.00mm²
Max. temperature	+105°C
Min. cross section	0.20mm²
Min. temperature	-30°C
Misc Attribute	AKZ950/12-5.08
No. of rows	1
Nominal current	10A
Nominal current - rounded value	10A
Nominal voltage	300V
Pins per row	12
RoHS-compliant	Yes
Series	AK(Z)950
Stripping length (max.)	7.00mm
Total number of pins	12
Width	62.50mm
