PTR Hartmann 50950077028E AK(Z)950 Socket Housing 7 Pins 5.08 mm Spacing

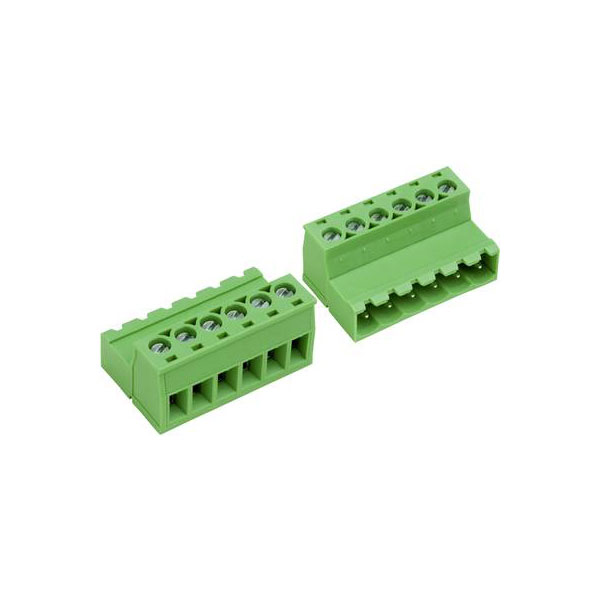

Image Representative of Range

PTR Hartmann 50950077028E AK(Z)950 Socket Housing 7 Pins 5.08 mm Spacing

PTR
Order Code:

06-2842

Brand: PTR MPN: 50950077028E EAN-13: 2050001583697
Qty Unit Price (Ex VAT)
3+ £1.73
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
295 in stock, despatched in 4 working days

The PTR Hartmann socket housing cable, model AKZ950/7-5.08, features seven pins with a contact spacing of 5.08 mm. It is typically utilised for reliable electrical connections in various industrial and electronic applications. This single-piece component ensures secure cable housing and efficient connectivity.
Type Socket housing cable
Number of Positions 7
Number of Rows 7
Contact Plating Tin plated
AWG (min.) 28
AWG max. 12
Case Material PA 6.6
Colour Green
Cross Section 4.00mm²
Dimensions (L x W x H) 15.00 x 37.06 x 19.20 mm
Height 19.20mm
Industrial packaging No
Length 15.00mm
Max. temperature +105°C
Min. cross section 0.20mm²
Min. temperature -30°C
Nominal Current 10A
Nominal Voltage 300V
Series AK(Z)950
Stripping length (max.) 7.00mm
Width 37.06mm
