PTR Hartmann 50950067028E AKZ950 Socket Housing 6 Pins 5.08mm Pitch

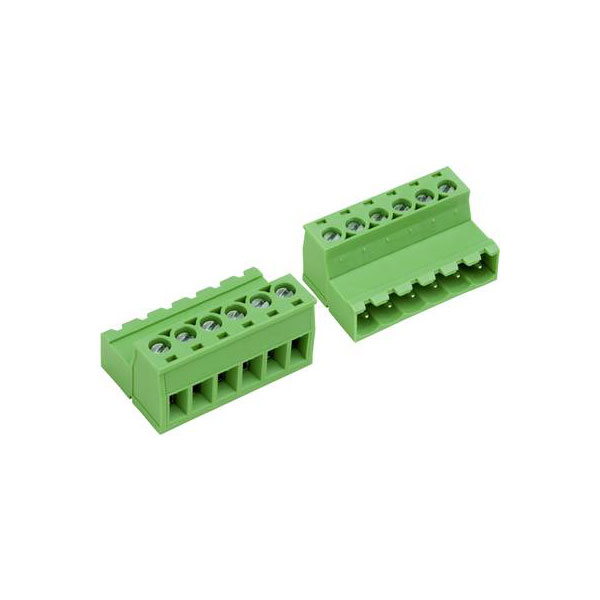

Image Representative of Range

PTR Hartmann 50950067028E AKZ950 Socket Housing 6 Pins 5.08mm Pitch

PTR
Order Code:

06-2840

Brand: PTR MPN: 50950067028E EAN-13: 2050001583680
Qty Unit Price (Ex VAT)
3+ £1.69
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
662 in stock, despatched in 4 working days

The PTR Hartmann socket housing cable AKZ950/6-5.08 features six pins with a contact spacing of 5.08 mm. Manufactured by PTR Hartmann, it is ideal for applications requiring precise electrical connections. This component is typically used in electronic and electrical setups for secure and reliable connections.
Type Socket housing cable
Number of Positions 6
Number of Rows 6
Contact Plating Tin plated
AWG (min.) 28
AWG max. 12
Case Material PA 6.6
Colour Green
Cross Section 4.00mm²
Dimensions (L x W x H) 15.00 x 31.98 x 19.20 mm
Height 19.20mm
Industrial packaging No
Length 15.00mm
Max. temperature +105°C
Min. cross section 0.20mm²
Min. temperature -30°C
Nominal Current 10A
Nominal Voltage 300V
Series AK(Z)950
Stripping length (max.) 7.00mm
Width 31.98mm
