PTR Hartmann 50950047028F AK(Z)950 Socket Housing 4 Pins 5.08mm Spacing

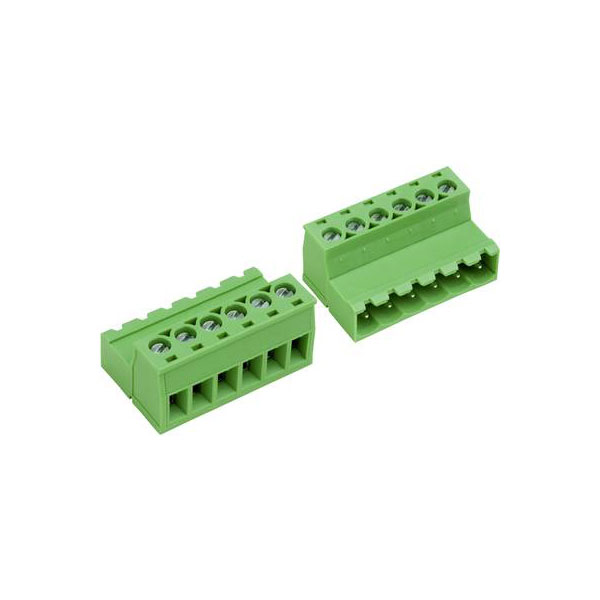

Image Representative of Range

PTR Hartmann 50950047028F AK(Z)950 Socket Housing 4 Pins 5.08mm Spacing

PTR
Order Code:

06-2836

Brand: PTR MPN: 50950047028F EAN-13: 2050001583666
Qty Unit Price (Ex VAT)
5+ £1.14
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
474 in stock, despatched in 4 working days

PTR Hartmann manufactures the AKZ950/4-5.08 socket housing cable, featuring a total of four pins with a contact spacing of 5.08 mm. This component, identified by part number 50950047028F, is suitable for securely housing and connecting electrical cables. It is typically used in electronic and electrical applications requiring reliable connections and signal transmission.
Type Socket housing cable
Number of Positions 4
Number of Rows 4
Contact Plating Tin plated
AWG (min.) 28
AWG max. 12
Case Material PA 6.6
Colour Green
Cross Section 4.00mm²
Dimensions (L x W x H) 15.00 x 21.82 x 19.20 mm
Height 19.20mm
Industrial packaging No
Length 15.00mm
Max. temperature +105°C
Min. cross section 0.20mm²
Min. temperature -30°C
Nominal Current 10A
Nominal Voltage 300V
Series AK(Z)950
Stripping length (max.) 7.00mm
Width 21.82mm
