PTR 54951060401D Socket Housing, 6 Pins, 5mm Contact Spacing

PTR
Order Code:

12-8081

Brand: PTR MPN: 54951060401D EAN-13: 2050001583956
Qty Unit Price (Ex VAT)
3+ £1.37
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
88 in stock, despatched in 4 working days

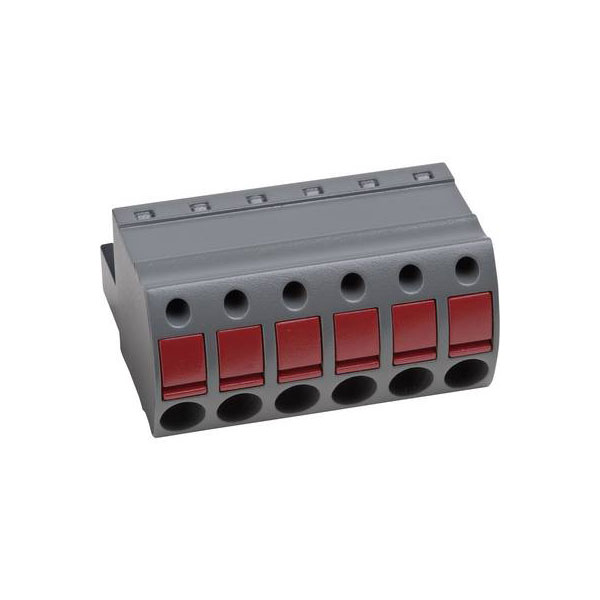

PTR Hartmann manufactures the AK4951/6KD-5.0 socket housing cable with 6 pins and a contact spacing of 5 mm. This component, identified by part number 54951060401D, is typically used in electrical and electronic connections. Its precise design ensures reliable connectivity in various industrial applications.
Type Socket housing cable
AWG (min.) 26
AWG max. 12
Case Material PA 6.6
Connector contact surface Tin plated
Connector system wire-to-board
Connector Type Socket, straight
Contact Material Copper alloy
CS 5mm
Depth 25.60mm
Dim (W x H x D) 30.00 x 15.00 x 25.60 mm
Factory colour Basalt grey
Height 15.00mm
Industrial packaging No
max. cross section 2.50mm²
Max. temperature +105°C
Min. cross section 0.14mm²
Min. temperature -30°C
Misc Attribute AK4951/6KD-5.0
Nominal Current 10A
Nominal current - rounded value 10A
Nominal Voltage 300V
Number of Rows 1
Pins per row 6
Series AK(Z)4951
Stripping length (max.) 12.00mm
Total number of pins 6
Width 30.00mm
