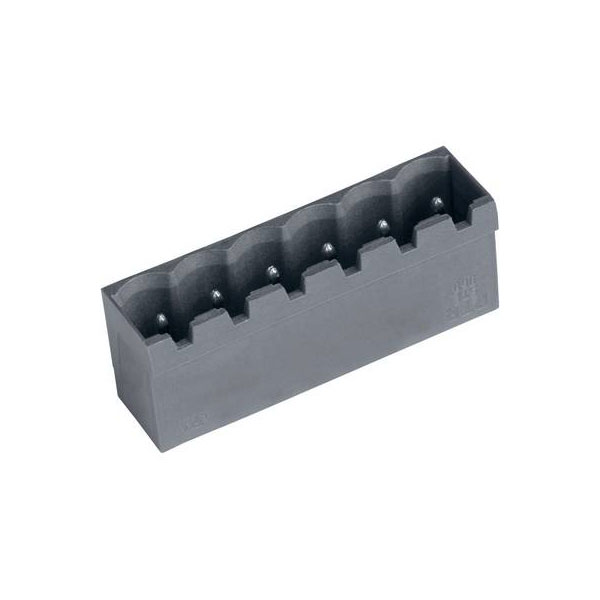

PTR 50950055611E STLZ950 Pin Housing 5 Pins 5.08mm Spacing PCB

The PTR Hartmann pin housing PCB, model STLZ950/5G-5.08-V, features five pins with a contact spacing of 5.08 mm. This pin housing is ideal for secure electrical connections in printed circuit boards. It is commonly used in electronic and electrical applications requiring reliable connectivity.

Type	Pin housing PCB
Number of Positions	5
Pitch	5.08mm
Board contact surface	Tin plated
Case Material	PA 6.6
Colour	Basalt grey
Connection	Print
Connector contact surface	Tin plated
Contact Material	Copper alloy
Cross-section range	5.08mm
Industrial packaging	No
Maximum Temperature	+105°C
Min. temperature	-30°C
Nominal Current	10A
Nominal Voltage	300V
Number of Rows	1
Pins per row	5
Series	STLZ950
Width	26.6mm
