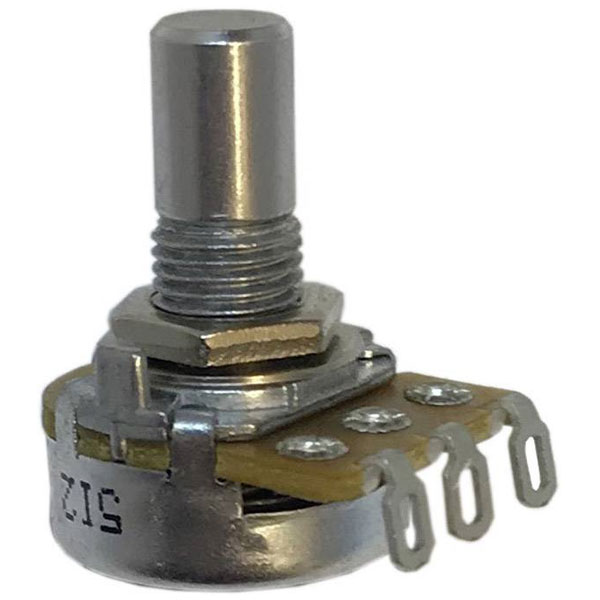

Potentiometer Service RV16AF-10-15R1-B5K Slide Potentiometer 5k Ohm 16mm

Potentiometer Service RV16AF-10-15R1-B5K is a reliable and versatile slide potentiometer designed with a resistance value of 5k ohms and a compact 16mm form factor. This variable resistor, bearing the identifier RV16AF-10-15R1-9304/B5K, is primarily used in applications requiring precise control over voltage adjustment and signal conditioning. It is suitable for various engineering settings, including audio equipment for volume control, industrial automation systems, and other electronic devices that benefit from adjustable resistance. Known for its dependable performance, this component facilitates smooth linear sliding adjustments, making it a vital element in both prototyping and production environments.

Type	Single turn rotary pot
Resistance	5kΩ
Tolerance	± 20%
Power Rating	0.125W
Taper	linear
Lever Length	15mm
Axle Diameter	6.35mm
Connection	Solder tag
Content	1
Maximum Temperature	+70°C
Mechanical Angle	300°
Minimum Temperature	-10°C
Output	Mono
Thread Size	M7
Tolerance ±	20%
