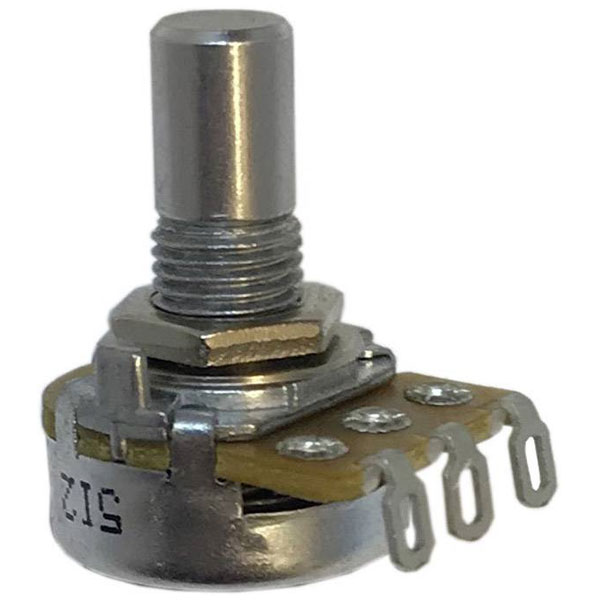

Potentiometer Service RV16AF-10-15R1-B2,5K Slide Potentiometer 2500 Ohm Linear

Potentiometer Service RV16AF-10-15R1-B2,5K is a slide potentiometer, specifically designed as a variable resistor with a resistance value of 2500 ohms, also known as 2.5K ohms. The linear resistance characteristic of this unit ensures a proportional relationship between the wiper position and the output voltage, making it an ideal choice for applications requiring precise control and adjustment, such as audio equipment, lighting controls, and industrial instrumentation. This device, also referred to as 1606368 - Potentiometer Service RV16AF-10-15R1-B2,5K, is robustly constructed to ensure reliable performance in environments where variable resistance is required for circuit tuning and signal modulation. Its compatibility with a variety of electronic systems adds to its versatility in engineering applications.

Type	Single turn rotary pot
Resistance	2.5kΩ
Tolerance	± 20%
Power Rating	0.125W
Taper	linear
Lever Length	15mm
Axle Diameter	6.35mm
Connection	Solder tag
Content	1
Maximum Temperature	+70°C
Mechanical Angle	300°
Minimum Temperature	-10°C
Output	Mono
Thread Size	M7
Tolerance ±	20%
