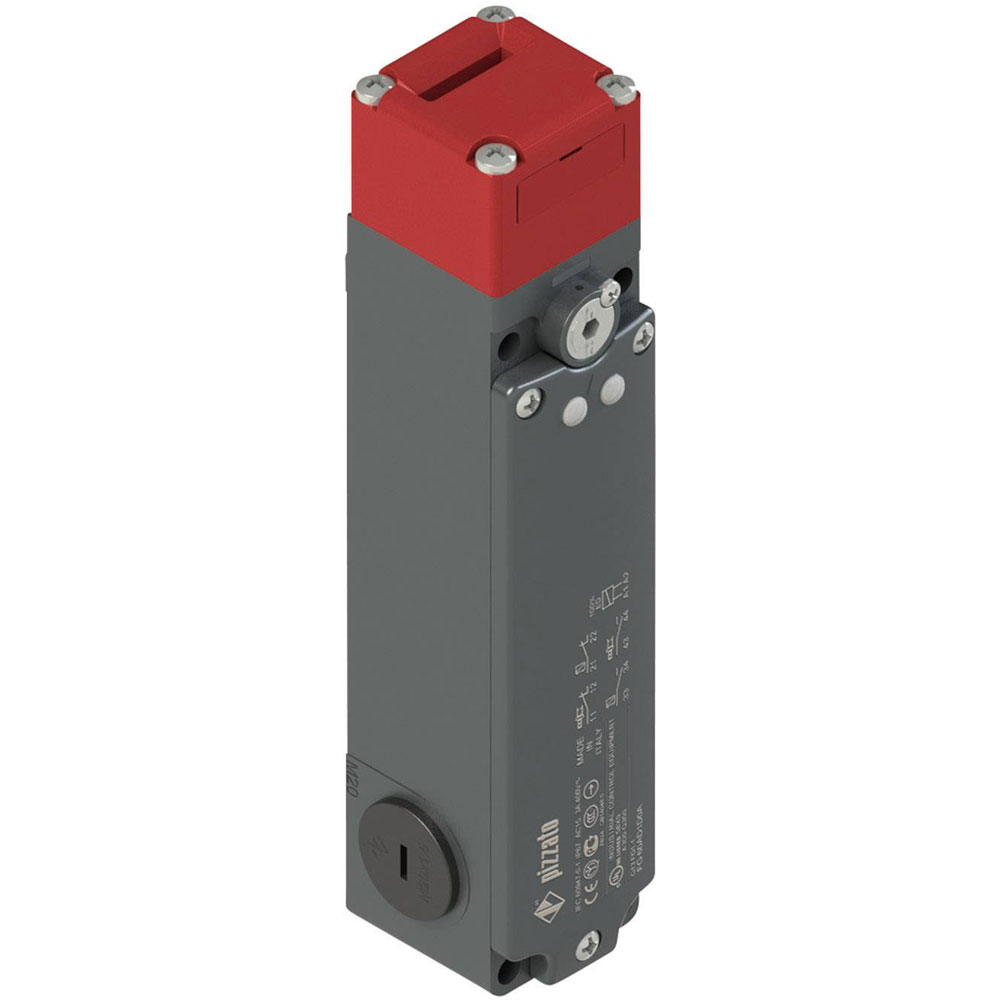

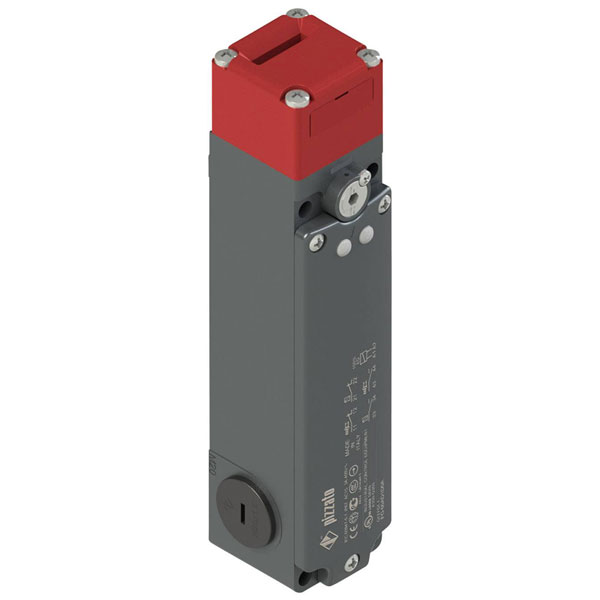

Pizzato Elettrica FG 60AD1DOZ Safety Button 250V 5A IP67 Actuator

Pizzato Elettrica
Standard range
Order Code:

12-7681

Brand: Pizzato Elettrica MPN: FG 60AD1DOZ EAN-13: 8018851094774
Qty Unit Price (Ex VAT)
1+ £143.50
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

The Pizzato Elettrica FG 60AD1DOZ safety button is designed for emergency power-off applications and features a separate actuator with a momentary action. It operates at 250 V AC with a 5 A current rating and has an IP67 protection rating for reliable use in demanding environments. Typical applications include use as a main switch in industrial machinery for enhanced safety.
Type Safety button
Actuating force 2500N
Casing Metal
Connection Screws
Depth 46mm
Dim (W x H x D) 40.2 x 194.7 x 46 mm
Durability 5 million cycles
Functions momentary
Height 194.7mm
IP rating IP67
Material Metal
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 1 1 normally open contact, 1 normally closed contact
Misc Attribute 2 FG 60AD1DOZ
Operation type separate actuator
RoHS-compliant Yes
Switching capacity 5 A/250V AC
Switching Current 5A
Switching current (max.) 5A
Switching voltage 250V AC
Temperature range -25 - +80°C
Width 40.2mm
