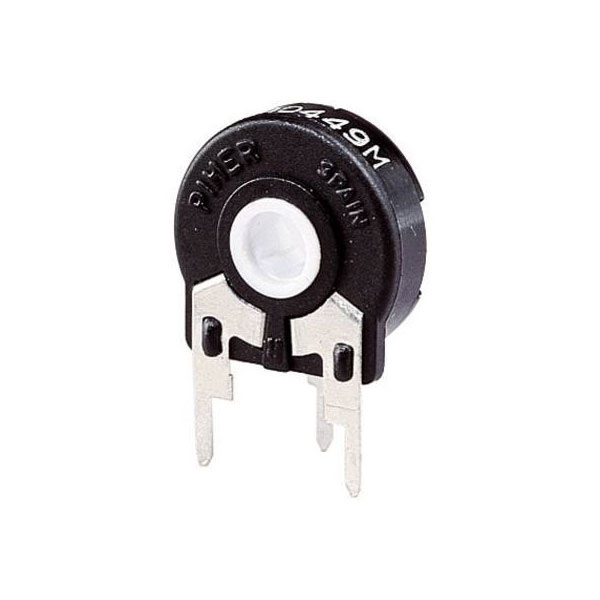

Piher PT15NH05505A3030 5M ±30% 0.25W 15mm Carbon Potentiometer Vertical Mount

A 5M, vertically mounted 15mm trimmer potentiometer that may be adjusted with either a suitable shaft or a thumbwheel. Designed for PCB installation.

• 0.25W
• Carbon resistive element
• Linear law
• Tolerance 30%
• Polyester substrate
• Dust-proof enclosure
• Slider position indicated by notch

Note: A range of adjusting shafts and thumbwheels is also available.

Type	Carbon film pot
Resistance	5MΩ
Tolerance	30%
Power Rating	0.25W
Adjustment Type	Side
Number of Turns	1
Pitch	2.54mm
Maximum Temperature	+70°C
Min. temperature	-25°C
Mounting Style	Through hole
