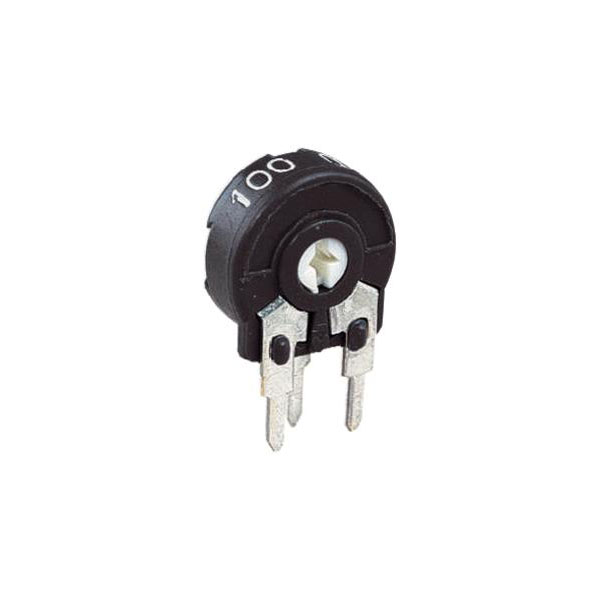

Piher PT-10LH01502A2020 5K ±20% 0.15W Carbon Potentiometer Horizontal Adjust

Piher
Standard range
Order Code:

51-6412

Brand: Piher MPN: PT10LH01-502A2020-PM-S EAN-13: 2050000111563
Qty Unit Price (Ex VAT)
5+ £0.170
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,017 in Stock, despatched in 4 days

This 10mm Carbon Potentiometer from Piher features a carbon resistive element and polyester substrate, in a dust proof enclosure with life up to 10,000 cycles. Piher's PT-10 LH series is rated at 0/15W at 50°C with an electrical rotation of 220 ±20°.


  • Content: 1 Unit
  • For hole diameter: 1.3mm
  • Electrical load capacity: 0.15W
  • External diameter: 10.3mm
  • Grid pitch: 2,5/5mm
  • Rotation angle: 240° ±10°
  • Resistance value: 5kΩ
  • RoHS compliant: yes
  • Temperature range: -25°C to +70°C
  • Threshold voltage: 230V
  • Tolerance: ±20%
Adjustment Type Side
Mounting Style Through hole
Number of Turns N/A
Pitch 2.5mm
Power Rating 0.15W
Resistance 5kΩ
Tolerance 20%
