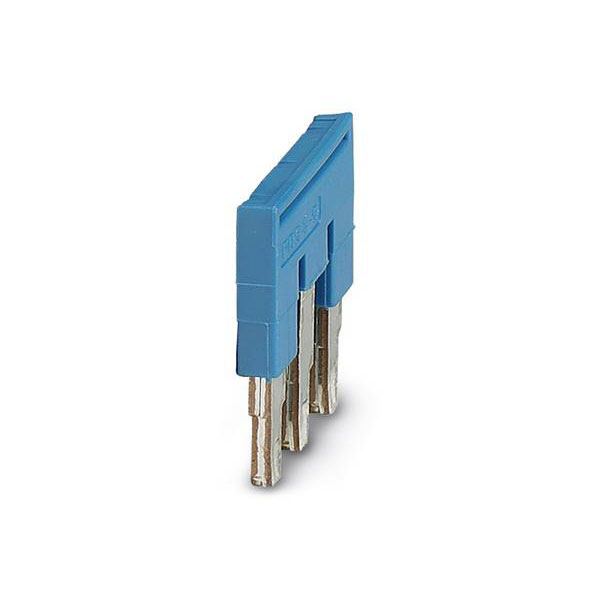

Phoenix Contact 3036880 FBS Plug-in Bridge 3 Positions Blue

Phoenix Contact manufactures the Plug-in Bridge FBS 3-5 BU 3036880, featuring a 26-pole configuration for continuity in serial and switchboard terminals. This component is ideal for interface cabling and wiring modules, with safety covers to ensure secure and reliable connections. Commonly, it is used in signal converter interfaces and VIP applications for managing ribbon cable connections across three floors.

Colour	Blue
Type	Safety cover
Number of Ways	3
Connection (type)	Connector
Connections	3
Contact Material	Copper
Content	50
Current Rating (A)	24
Dim	(LxW) 16mmx9.8mm
Explosion-tested version Ex e	false
Industrial packaging	Yes
Insulated	N/A
Length (mm)	16mm
Material (details)	Polyamide
Misc Attribute	FBS 3-5 BU
Model	N/A
Modular spacing	5.2mm
Mounting method	Pluggable
Nominal Current	24 A
Number of bridged clamps	N/A
Product Type	Plug-in Bridge
Rated current In	N/AA
Rated voltage	N/AV
Temperature Range	-60 to +110°C
Weight (g, g/m)	2.561g
Width (mm)	5.2
With contact protection	N/A
