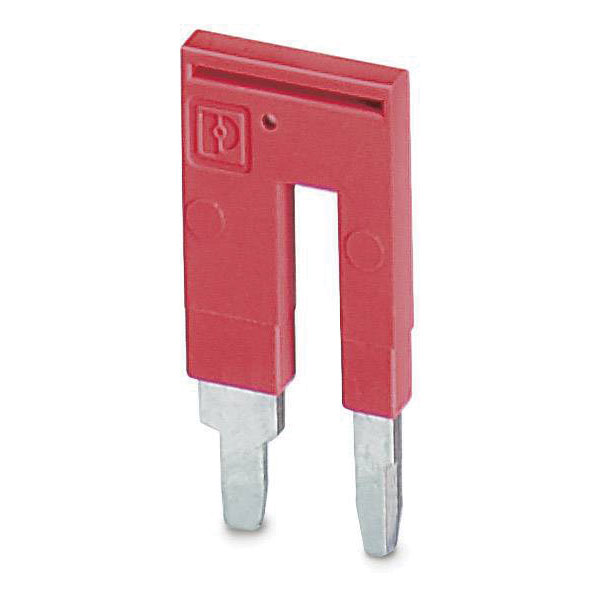

Phoenix Contact 3030860 Reducing Bridge Connects Terminals of Varying Sizes

The Phoenix Contact 3030860 RB ST 6-(2.5/4) reducing bridge is a component used in terminal strips and screw connections to ensure continuity and proper electrical distribution. It features a reducer design, making it suitable for applications requiring a transition between different terminal sizes. Typical uses include integration in switchboard terminals and serial terminal assemblies.

Colour	Red
Current Rating	48A
Type	Reducer
Number of Ways	2
Connection (type)	Screw Terminal
Connections	2
Content	1 pc(s)
Current Rating (A)	48
Explosion-tested version Ex e	false
Insulated	N/A
Misc Attribute 1	RB ST 6-(2,5/4)
Misc Attribute 2	Reducing Bridge
Model	N/A
Modular spacing	9mm
Mounting method	Pluggable
Nominal Current	32 A
Number of bridged clamps	N/A
Product Type	Plug-in Bridge
Rated current In	N/AA
Rated voltage	N/AV
Temperature Range	-60 to +105°C
Width (mm)	14.3
Wire Gauge	2.5–4mm²
With contact protection	N/A
