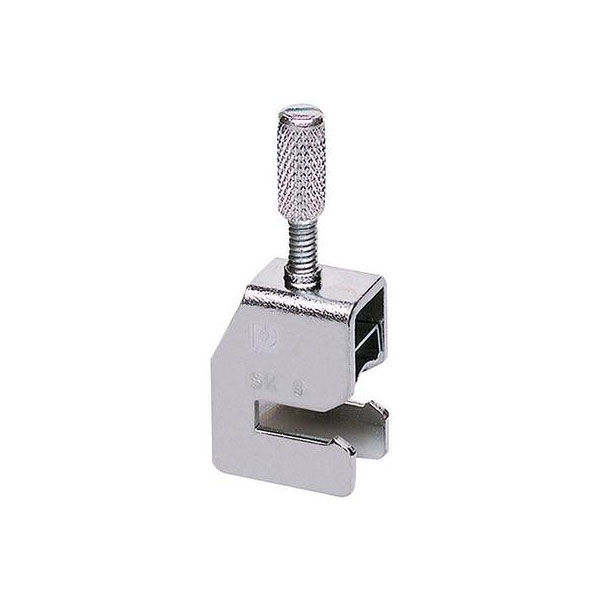

Phoenix Contact 3025189 SK 20 Shield Terminal for Busbar Connections

The Phoenix Contact 3025189 SK 20 is a silver shield terminal used for ensuring continuity in wiring systems. It is designed with a tightening torque of 0.8 Nm for secure connections in components, connectors, and clamps. Typically applied in serial and switchboard terminals, it provides effective shielding connections.

Colour	Silver
Type	Shielding connector
Number of Ways	1
Clamping range diameter	3 - 20mm
Compatible with (details)	Shield connection
Connection (type)	Screw Terminal
Connections	1
Contact Material	Silver
Content	1
Explosion-tested version Ex e	N/A
Height	19.5mm
Length (mm)	75mm
Material (details)	Steel
Misc Attribute 1	Tightening torque 0.8 Nm
Misc Attribute 2	SK 20
Mounting method	Busbar
Operating Temperature	- - -°C
Permitted cable diameter	3 - 20mm
Product Type	Terminal Block
Type of electric connection	Screw connection
Weight (g, g/m)	28g
Width	24mm
