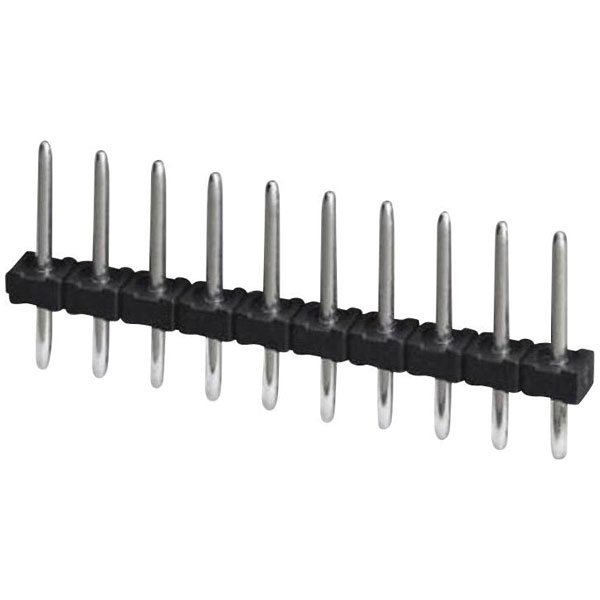

Phoenix Contact 1933260 pin header 1x10 vertical COMBICON reflow solderable

The Phoenix Contact pin strip is a precision connector with one row of 10 pins. It features a compact design and is typically used in electronic assemblies for secure multi-pin connections. This component is ideal for applications requiring reliable and precise electrical conduction in circuits.

Type	Pin strip (precision)
Number of Positions	10
Number of Rows	1
Angle PCB/contact	N/A
Case Material	PA
Colour	Black
Connection	Print
Connector model	Other
Connector orientation	Perpendicular (to the PCB)
Connector Type	Pin strip, straight
Contact surface	Tin plated
Contact Type	Pin
Cross Section	5mm
Diameter connection pin	1.3mm
Dimensions	(L x W x H) 2.80 x 50.00 x 13.00 mm
Height	13.00mm
Housing Colour	Black
Industrial packaging	Yes
Inflammability class of insulation material according to UL94	V0
Length	2.80mm
Length pin	3.5mm
Material insulation body	Other
Material of contact surface	Other
Misc Attribute	PST 1,3/10-5,0
Modular spacing connections	5mm
Modular spacing contacts	5mm
Nominal Current	12A
Nominal Voltage	320V
Number of plug-in contact rows	1
Number of Poles	10
Operating Temperature	-40 - 100°C
Overvoltage category	III
Pin length (PCB)	3.80mm
Pin length (receptacle)	7.20mm
Pin Ø	1mm
Pin shape	Circular
Pins per row	10
Pollution degree	2
Rated current In	12A
Rated Surge Voltage	4kV
Rated voltage	320V
Separable	No
Suitable for PCB thickness	N/Amm
Type of banding	Carton (for SMD)
Type of connection	N/A
Type of electric connection	Other
Type of fastening	Other
Type of PCB fastening	N/A
Width	50.00mm
