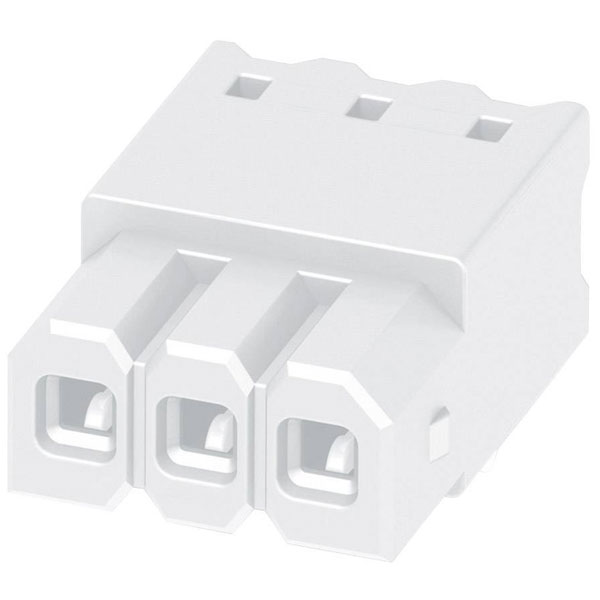

The Phoenix Contact pin housing PCB is a multi-pin connector featuring three pins with a contact spacing of 2.50 mm. It is typically used in electronic applications for secure and reliable connections on printed circuit boards. This component is valued for its precision engineering and compatibility with a range of electronic devices.
| Type |
Pin housing PCB |
| Number of Positions |
3 |
| Number of Rows |
1 |
| Angle PCB/contact |
N/A |
| Colour |
White |
| Connection |
Print |
| Connector model |
Other |
| Connector orientation |
Parallel (to the PCB) |
| Connector System |
wire-to-board |
| Connector Type |
Plug, vertical mount |
| Contact Material |
Tin plated |
| Contact Type |
Bus |
| Cross Section |
2.50mm |
| Diameter connection pin |
1mm |
| Dimensions |
(L x W x H) 7.10 x 12.00 x 8.00 mm |
| Height |
8.00mm |
| Housing Colour |
Other |
| Industrial packaging |
No |
| Inflammability class of insulation material according to UL94 |
V0 |
| Length |
7.10mm |
| Length pin |
2.1mm |
| Material insulation body |
Other |
| Material of contact surface |
Other |
| Misc Attribute |
PTSM 0,5/ 3-HHI-2,5-THR WH R32 |
| Modular spacing connections |
2.5mm |
| Modular spacing contacts |
2.5mm |
| Nominal Current |
6A |
| Nominal Voltage |
50V |
| Number of plug-in contact rows |
1 |
| Number of Poles |
3 |
| Operating Temperature |
-40 - 100°C |
| Overvoltage category |
III |
| Pins per row |
3 |
| Pollution degree |
2 |
| Rated current In |
6A |
| Rated Surge Voltage |
2.5kV |
| Rated voltage |
160V |
| Series |
PTSM |
| Suitable for PCB thickness |
N/Amm |
| Type of banding |
Other |
| Type of connection |
N/A |
| Type of electric connection |
Other |
| Type of fastening |
Other |
| Type of PCB fastening |
N/A |
| Width |
12.00mm |
