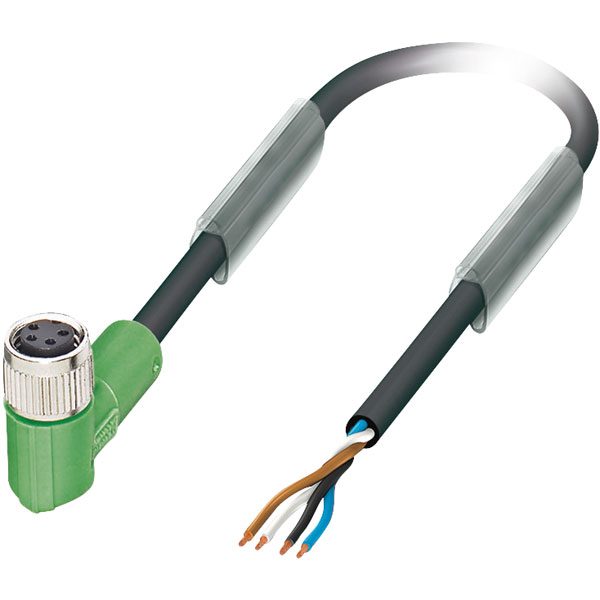

Phoenix Contact 1694172 Sensor/Actuator Cable 10m Black-Grey

Phoenix Contact sensor/actuator cable with an angled M8 socket and a free end.

• Cable length 10m
• Cable diameter 4.4mm
• Number of pins: 4
• Nominal current 3A
• Nominal voltage 30V
• Working temperature range -40 to +80°C

Type	Sensor/actuator connector (pre-fab)
Cable Length	10m
Cable Type	Multi-core
Colour cable sheath	Other
Continuity resistance	N/AmOhm
Degree of protection (IP)	IP65
Halogen free	true
IP Rating	IP65/IP68/IP69K
Material contact body	CuSn
Material of cable sheath	Other
Material of contact surface	Other
Maximum Temperature	+80°C
Min. temperature	-40°C
Number of Poles	4
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-25 - 80°C
Positioning cable feed, box-sided	Angled
Positioning cable feed, field-sided	Other
Rated current In	4A
Rated voltage	48V
Screened	false
Type of electrical connection, box-sided	M8
Type of electrical connection, field-sided	Other
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	N/A
Vulcanized	false
With LED indication	false
