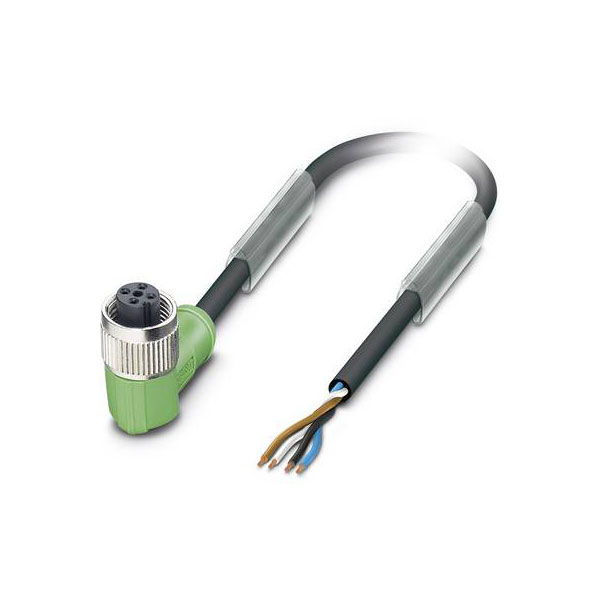

Phoenix Contact 1693526 Sensor/Actuator Cable 4P PVC 3 m M12 Angled

Phoenix Contact manufactures the Sensor/Actuator cable SAC-4P-3,0-PVC/M12FR, a 4-wire sensor cable designed for reliable signal transmission. With a pre-fabricated M12 sensor/actuator connector, this cable is ideal for industrial automation and control systems. Its robust construction ensures durability in harsh operating environments.

Connector 1	Cable, open end
Connector 2	M12
Colour	Black
Length	3m
Type	Sensor connector
Cable Length	3m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Connection	Open end cable
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.34mm²
Degree of protection (IP)	IP65
Diameter	1.26mm
Halogen free	true
Industrial packaging	Yes
Material	PVC
Material contact body	CuSn
Material of cable sheath	Polyvinyl chloride (PVC)
Material of contact surface	Other
Misc Attribute	SAC-4P- 3,0-PVC/M12FR
Nominal Current	4A
Nominal Voltage	250V AC
Number of Poles	4
Permitted cable outer temperature after assembling without vibration	-25 - 80°C
Permitted cable outer temperature during assembling/handling	-10 - 80°C
Positioning cable feed, box-sided	Angled
Positioning cable feed, field-sided	Other
Rated current In	4A
Rated voltage	250V
Screened	false
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	Other
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	N/A
Vulcanized	false
With LED indication	false
