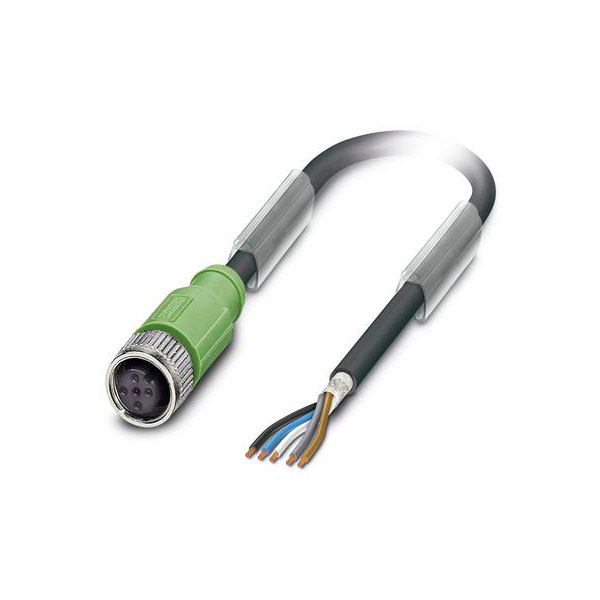

Phoenix Contact 1682948 SAC Cable 5P 3m PUR M12FS Black-Gray Shielded

Phoenix Contact manufactures the Sensor/Actuator cable SAC-5P-3,0-PUR/M12FS SH 1682948, featuring a robust PUR sheath and an M12 female connector. This pre-fabricated cable is designed for reliable connections in industrial applications, capable of handling demanding environments. Typically used in sensor and actuator connections, it facilitates efficient signal transmission and power supply.

Connector 1	Cable, open end
Connector 2	M12
Colour	Black
Length	3m
Type	Sensor connector
Cable Length	3m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Connection	Open end cable
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.34mm²
Degree of protection (IP)	IP65
Diameter	1.27mm
Halogen free	true
Material	PUR
Material contact body	CuSn
Material of cable sheath	Other
Material of contact surface	Other
Misc Attribute	SAC-5P- 3,0-PUR/M12FS SH
Nominal Current	4A
Number of Poles	5
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-25 - 80°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Other
Rated current In	4A
Rated voltage	48V
Screened	true
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	Other
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	N/A
Vulcanized	false
With LED indication	false
