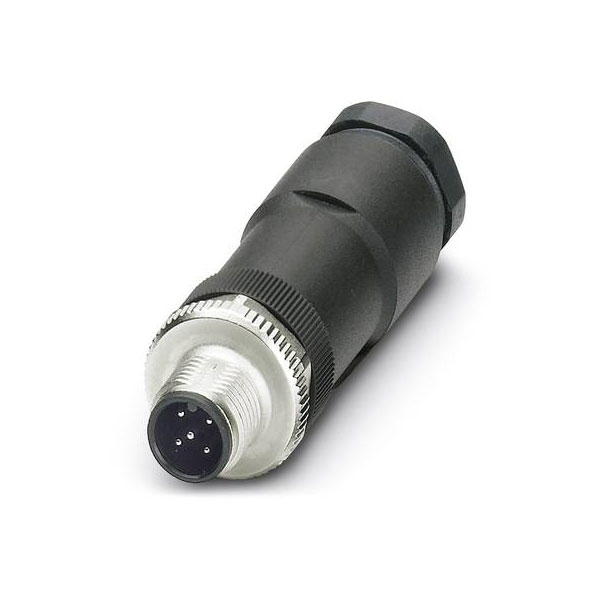

Phoenix Contact 1662748 SACC M12 Male Connector 5-Pos A-Coded PG11 Screw

The Phoenix Contact plug-in connector SACC-M12MS-5CON-PG11-DUO-M 1662748 is a robust sensor/actuator connector. It features a compact and durable design suitable for challenging environments. Typical applications include industrial automation and machinery.

Type	Sensor connector
Number of Contacts	5
Connector Size	M12
Gender	Plug
Ambient temperature	-40 - 85°C
Coating housing	Other
Coding	A
Conductor Cross Section	0.75mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 0.75mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.25 - 0.75mm²
Connectable conductor cross section multi-wired	0.25 - 0.75mm²
Connectable conductor cross section solid-core	0.25 - 0.75mm²
Connection	Screw terminal
Connector 1	M12 plug, straight
Connector 2	Customisable
Contact Type	Other
Degree of protection (IP), mounted	IP67
Diameter connector	N/Amm
For cable outer diameter	- - -mm
Housing Material	Plastic
Inflammability class of insulation material according to UL94	N/A
IP Rating	IP67
Material of contact surface	Other
Material thread ring	Other
Min. number of insertion cycles	50
Misc Attribute	SACC-M12MS-5CON-PG11-DUO-M
Nominal Current	4A
Number of control contacts	5
Number of data contacts	0
Number of power contacts	0
Overvoltage category	II
Pollution degree	3
Rated current In	4A
Rated voltage	48V
Screened	false
Thread size M	N/A
Thread Type	M12
Type of electric connection	Screw connection
Type of housing	Straight
Type of locking	Other
With protective conductor	false
With status indication	false
