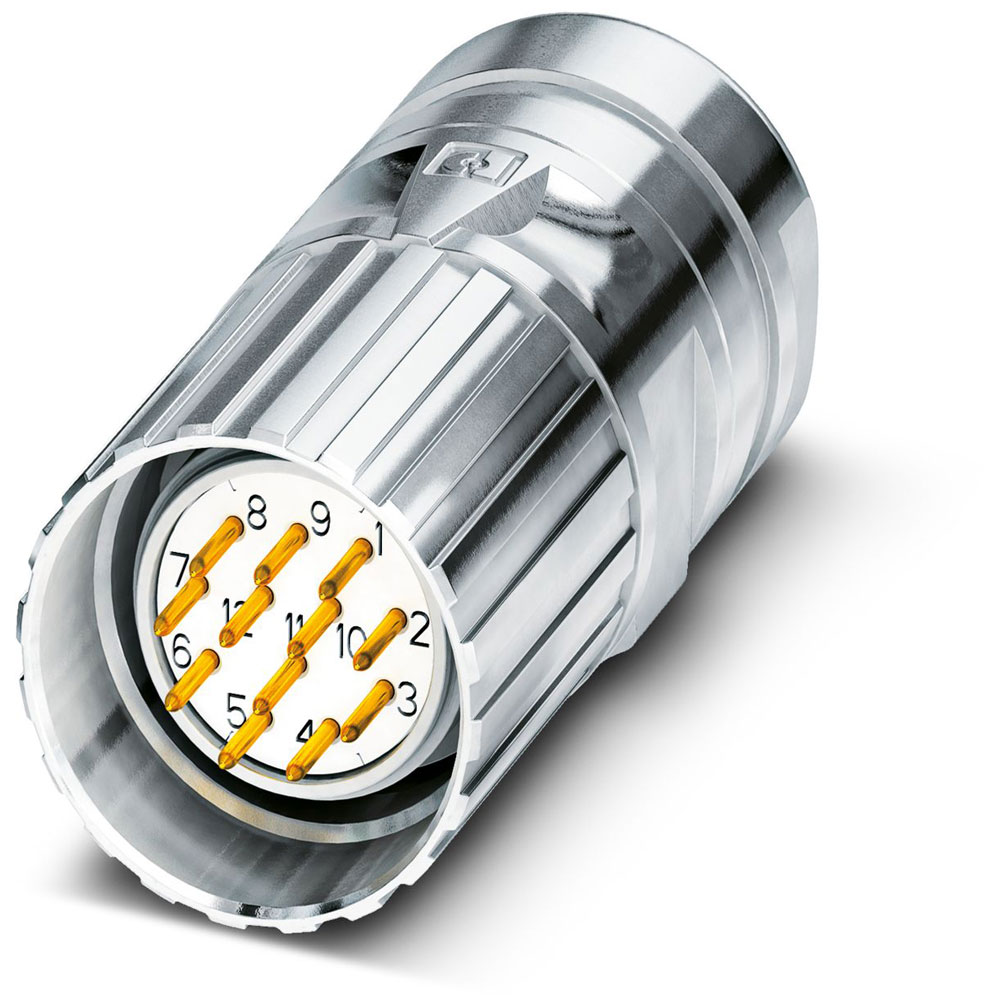

Phoenix Contact 1620158 Coupler connector - CA-12S1N8A90DN

Phoenix Contact 1620158 Coupler connector - CA-12S1N8A90DN - M23, Coupler connector, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 12, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, cable diameter range: 3 mm ... 14.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 124404.

• Order information: Order crimp contacts Ø 1 mm separately
• Coding: N
• Insulation body material: PA 6.6
• Connection method: Crimp connection
• Contact switching type: Socket
• Application: Signal
• Number of positions: 12
• Direction of rotation: Standard
• Connection profile: 12
• Contact diameter Signal contacts: 1 mm
• Litz wire cross-section Signal contacts min: 0.08 mm²
• Litz wire cross-section Signal contacts max: 1 mm²
• Nominal current per signal contact: 8 A
• Rated voltage Signal contact: 48 V AC
• Rated surge voltage: 1.5 kV
• Overvoltage category: III
