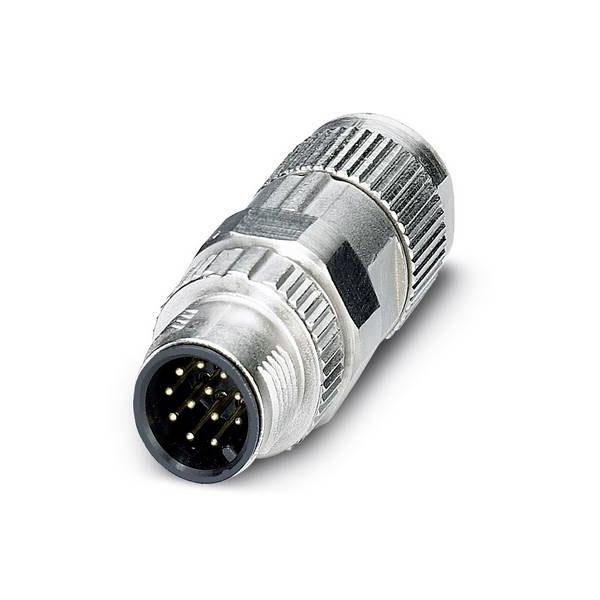

Phoenix Contact manufactures the plug-in connector SACC-MS-12PCON SCO 1559592, which is part of their sensor/actuator connector line. It is designed for efficient electrical connectivity in industrial automation systems. Common applications include factory automation and machinery where reliable data and power transmission are required.
| Connector 1 |
M12 |
| Connector 2 |
Customisable |
| Colour |
Multicolour |
| Type |
Sensor connector |
| Ambient temperature |
-25 - 85°C |
| Coating housing |
Other |
| Coding |
A |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.14 - 0.14mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.14 - 0.14mm² |
| Connectable conductor cross section multi-wired |
0.14 - 0.14mm² |
| Connectable conductor cross section solid-core |
0.14 - 0.14mm² |
| Connection |
Quick-connect |
| Contact Type |
Other |
| Cross-section (sensor/actuator wiring) |
0.14mm² |
| Degree of protection (IP), mounted |
IP67 |
| Diameter |
1.05mm |
| Diameter connector |
15.916272mm |
| For cable outer diameter |
- - -mm |
| Housing Material |
Other |
| Inflammability class of insulation material according to UL94 |
V0 |
| IP Rating |
IP67 |
| Material of contact surface |
Nickel |
| Material thread ring |
Other |
| Maximum Temperature |
+85°C |
| Min. number of insertion cycles |
100 |
| Min. temperature |
-25°C |
| Misc Attribute |
SACC-MS-12PCON SCO |
| Nominal Current |
1.5A |
| Number of control contacts |
12 |
| Number of data contacts |
0 |
| Number of power contacts |
0 |
| Overvoltage category |
II |
| Pollution degree |
3 |
| Rated current In |
1.5A |
| Rated voltage |
30V |
| Screened |
false |
| Thread size M |
N/A |
| Thread Type |
M12 |
| Type of electric connection |
Insulation piercing connection |
| Type of housing |
Straight |
| Type of locking |
Other |
| With protective conductor |
false |
| With status indication |
false |
