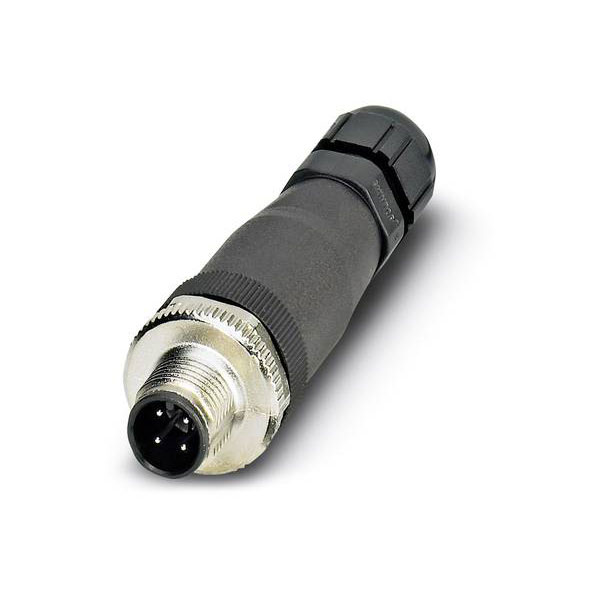

Phoenix Contact manufactures the sensor/actuator connector SACC-M12MS-4CON-PG 7-M SKIN, identified by part number 1556870. It features a robust plug-in connector designed for reliable data and power transmission in industrial environments. Typical applications include factory automation, process control, and machinery systems where secure and efficient connections are essential.
| Connector 1 |
M12 |
| Connector 2 |
Customisable |
| Colour |
Multicolour |
| Type |
Sensor connector |
| Ambient temperature |
-20 - 80°C |
| Coating housing |
Other |
| Coding |
A |
| Conductor Cross Section |
0.75mm² |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.25 - 0.75mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.25 - 0.75mm² |
| Connectable conductor cross section multi-wired |
0.25 - 0.75mm² |
| Connectable conductor cross section solid-core |
0.25 - 0.75mm² |
| Connection |
Screw terminal |
| Contact Type |
Other |
| Degree of protection (IP), mounted |
IP67 |
| Diameter connector |
N/Amm |
| For cable outer diameter |
- - -mm |
| Housing Material |
Other |
| Inflammability class of insulation material according to UL94 |
HB |
| Material of contact surface |
Other |
| Material thread ring |
Other |
| Min. number of insertion cycles |
100 |
| Misc Attribute |
SACC-M12MS-4CON-PG 7-M SKIN |
| Nominal Current |
4A |
| Nominal Voltage |
250V |
| Number of control contacts |
4 |
| Number of data contacts |
0 |
| Number of power contacts |
0 |
| Overvoltage category |
II |
| Pollution degree |
3 |
| Rated current In |
4A |
| Rated voltage |
250V |
| Screened |
false |
| Thread size M |
N/A |
| Thread Type |
M12 |
| Type of electric connection |
Screw connection |
| Type of housing |
Straight |
| Type of locking |
Other |
| With protective conductor |
false |
| With status indication |
false |
