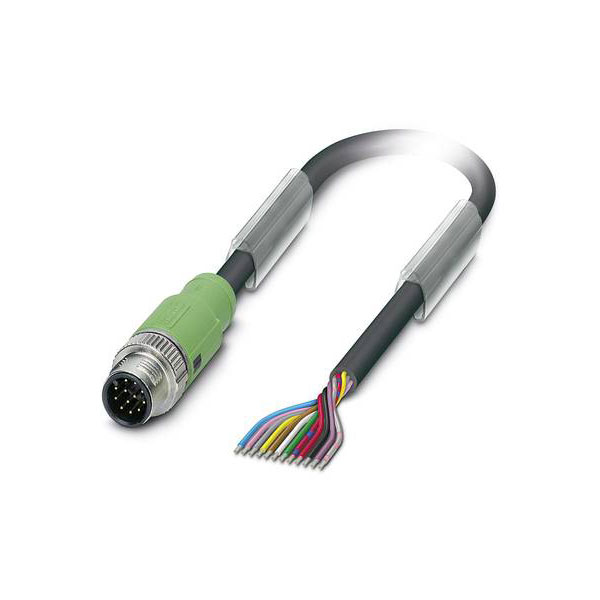

Phoenix Contact 1554775 Sensor/Actuator Cable 12P M12 1.5m PVC Black

Phoenix Contact's Sensor/Actuator Cable SAC-12P-MS/1,5-PVC SCO 1554775 features a 12-pin configuration with PVC insulation. This pre-fabricated connector is designed for reliable signal and power transmission. It is typically used in industrial automation settings to connect sensors and actuators.

Connector 1	Cable, open end
Connector 2	M12
Colour	Black
Length	1.5m
Type	Sensor connector
Cable Length	1.5m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Connection	Open end cable
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.14mm²
Degree of protection (IP)	IP65
Diameter	1mm
Halogen free	true
IP Rating	IP65
Material	PVC
Material contact body	CuZn
Material of cable sheath	Polyvinyl chloride (PVC)
Material of contact surface	Other
Misc Attribute	SAC-12P-MS/ 1,5-PVC SCO
Nominal Current	1.5A
Number of Poles	12
Permitted cable outer temperature after assembling without vibration	-25 - 80°C
Permitted cable outer temperature during assembling/handling	-5 - 80°C
Positioning cable feed, box-sided	Other
Positioning cable feed, field-sided	Straight
Rated current In	1.5A
Rated voltage	30V
Screened	false
Thread Type	M12
Type of electrical connection, box-sided	Other
Type of electrical connection, field-sided	M12
Type of plug-in contact, box-sided	N/A
Type of plug-in contact, field sided	Male (plug)
Vulcanized	false
With LED indication	false
