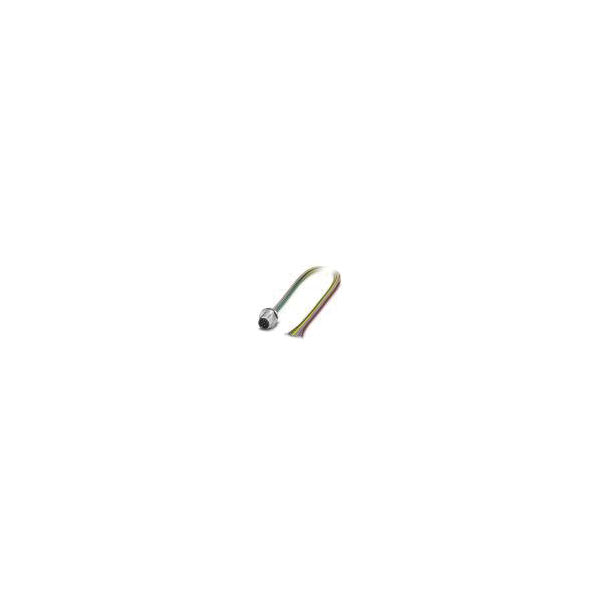

Phoenix Contact 1554571 SACC-E-M12M 0.50 m 8-pin Sensor/actuator connector

The Phoenix Contact 1554571 is a robust sensor/actuator built-in connector featuring eight pins and a 0.50 m length. It is designed for reliable signal transmission in various industrial automation applications. This connector ensures secure and efficient connections in complex machinery environments.

Connector 1	M12
Colour	Multicolour
Length	0.5m
Type	Sensor/actuator built-in connector
Ambient temperature	85 - 85°C
Cable Length	0.5mm
Coating housing	N/A
Coding	A
Connection	Open end cable
Core cross section	0.25mm²
Degree of protection (IP), mounted	IP69K
Housing Material	Other
Inflammability class of insulation material according to UL94	V0
IP Rating	IP67
Material	TPE
Material core insulation	Other
Material of contact surface	Other
Min. number of insertion cycles	100
Misc Attribute	SACC-E-M12MS-8CON-PG 9/0,5 VA
Mounting method	N/A
Number of control contacts	8
Number of Poles	N/A
Number of power contacts	N/A
Operating Temperature	-25 - 85°C
Pollution degree	N/A
Rated current In	2A
Rated voltage	30V
Screw-in thread	N/A
Type of plug-in contact, inner side	None
Type of plug-in contact, outer side	Male (plug)
With PE-connection	false
With shield connection	false
