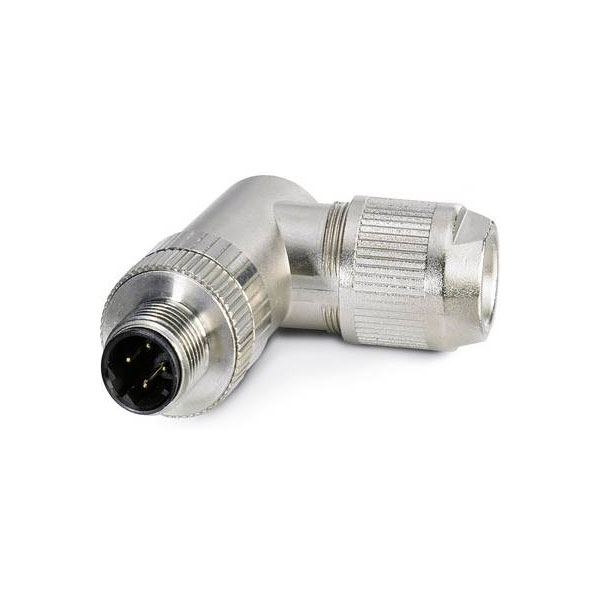

The SACC-M12MRD-4Q SH PN 1554539 by Phoenix Contact is a robust bus system plug-in connector designed for sensor/actuator data transmission. Its secure M12 connection ensures reliable performance in industrial automation applications. Typical uses include facilitating efficient communication in factory and building automation systems.
| Connector 1 |
M12 |
| Connector 2 |
Customisable |
| Colour |
Multicolour |
| Type |
Bus connector |
| Ambient temperature |
-40 - 85°C |
| Coating housing |
Other |
| Coding |
D |
| Connectable conductor cross section fine-strand with cable end sleeve |
- - -mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
- - -mm² |
| Connectable conductor cross section multi-wired |
- - -mm² |
| Connectable conductor cross section solid-core |
- - -mm² |
| Connection |
Cut & Clip |
| Contact Type |
Other |
| Degree of protection (IP), mounted |
IP67 |
| Diameter |
1.60mm |
| Diameter connector |
N/Amm |
| For cable outer diameter |
- - -mm |
| Housing Material |
Other |
| Inflammability class of insulation material according to UL94 |
V0 |
| IP Rating |
IP67 |
| Material of contact surface |
Nickel |
| Material thread ring |
Other |
| Maximum Temperature |
+85°C |
| Min. number of insertion cycles |
100 |
| Min. temperature |
-40°C |
| Misc Attribute |
SACC-M12MRD-4Q SH PN |
| Nominal Current |
1.75A |
| Nominal Voltage |
60V DC |
| Number of control contacts |
4 |
| Number of data contacts |
0 |
| Number of power contacts |
0 |
| Overvoltage category |
II |
| Pollution degree |
3 |
| Rated current In |
1.75A |
| Rated voltage |
48V |
| Screened |
true |
| Thread size M |
N/A |
| Thread Type |
M12 |
| Type of electric connection |
Insulation displacement connection |
| Type of housing |
Angled |
| Type of locking |
Other |
| With protective conductor |
false |
| With status indication |
false |
