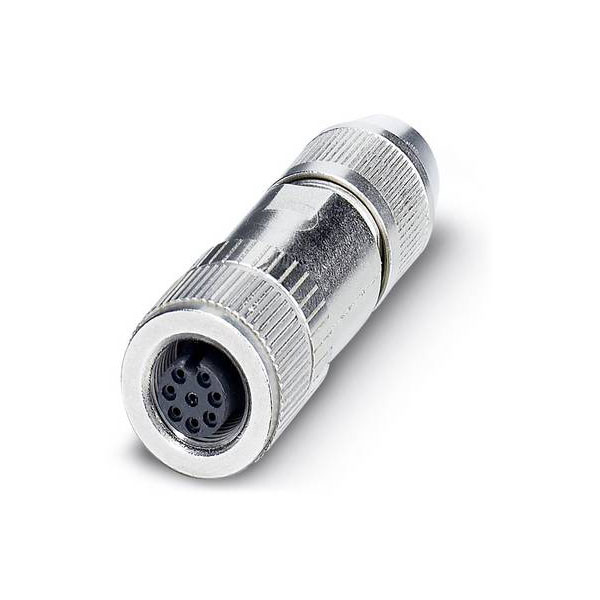

Phoenix Contact 1553640 Bus Connector 8-Position Ethernet Shielded Socket

The SACC-M12FS-8Q SH 1553640 by Phoenix Contact is a robust bus system plug-in connector. It features an M12 connector design suitable for sensor and actuator data cables, ensuring reliable data transmission. Typically used in industrial automation, this connector supports efficient communication between devices in various applications.

Connector 1	M12
Connector 2	Customisable
Colour	Multicolour
Type	Sensor connector
Ambient temperature	-40 - 85°C
Coating housing	Other
Coding	A
Conductor Cross Section	0.34mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.14 - 0.34mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.14 - 0.34mm²
Connectable conductor cross section multi-wired	0.14 - 0.34mm²
Connectable conductor cross section solid-core	0.14 - 0.34mm²
Connection	Cut & Clip
Contact Type	Other
Degree of protection (IP), mounted	IP67
Diameter	1.60mm
Diameter connector	N/Amm
For cable outer diameter	- - -mm
Housing Material	Other
Inflammability class of insulation material according to UL94	V0
Material of contact surface	Nickel
Material thread ring	Other
Min. number of insertion cycles	100
Misc Attribute	SACC-M12FS-8Q SH
Nominal Current	2A
Number of control contacts	8
Number of data contacts	0
Number of power contacts	0
Overvoltage category	II
Pollution degree	3
Rated current In	2A
Rated voltage	30V
Screened	true
Thread size M	N/A
Thread Type	M12
Type of electric connection	Insulation displacement connection
Type of housing	Straight
Type of locking	Other
With protective conductor	false
With status indication	false
