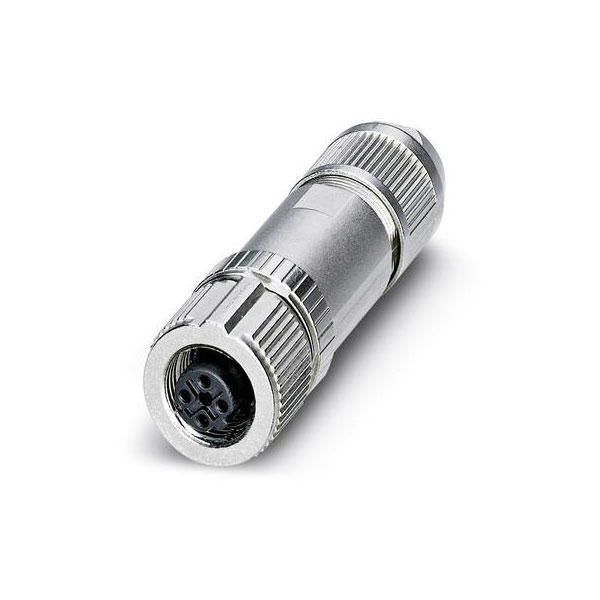

Phoenix Contact 1553611 Connector Ethernet 4-Pos Shielded Socket Straight

Phoenix Contact's SACC-M12FSD-4Q SH 1553611 is a robust bus system plug-in connector designed for reliable sensor and actuator data transmission. It features a secure M12 format, ensuring a compact and durable connection suitable for industrial environments. Commonly used in automation systems, this connector facilitates efficient communication in complex machinery setups.

Connector 1	M12
Connector 2	Customisable
Colour	Multicolour
Type	Sensor connector
Ambient temperature	-40 - 85°C
Coating housing	Other
Coding	D
Conductor Cross Section	0.34mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.14 - 0.34mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.14 - 0.34mm²
Connectable conductor cross section multi-wired	0.14 - 0.34mm²
Connectable conductor cross section solid-core	0.14 - 0.34mm²
Connection	Cut & Clip
Contact Type	Other
Degree of protection (IP), mounted	IP67
Diameter	1.60mm
Diameter connector	N/Amm
For cable outer diameter	- - -mm
Housing Material	Other
Inflammability class of insulation material according to UL94	V0
Material of contact surface	Nickel
Material thread ring	Other
Min. number of insertion cycles	100
Misc Attribute	SACC-M12FSD-4Q SH
Nominal Current	1.75A
Number of control contacts	4
Number of data contacts	0
Number of power contacts	0
Overvoltage category	II
Pollution degree	3
Rated current In	1.75A
Rated voltage	48V
Screened	true
Thread size M	N/A
Thread Type	M12
Type of electric connection	Insulation displacement connection
Type of housing	Straight
Type of locking	Other
With protective conductor	false
With status indication	false
