Phoenix Contact 1546592 Cable SAC 3P M12 OD 2m Orange A-coded with LEDs

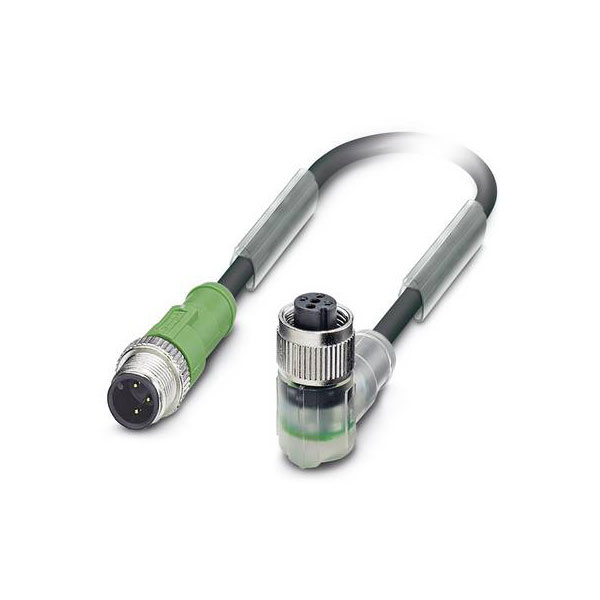

The Phoenix Contact Sensor/Actuator cable SAC-3P-M12MS/2,0-150/M12FR-2L 1546592 features a straight M12 plug and an angled M12 socket with LED indication for clear signalling. It belongs to the PLUSCON industrial plug line and is used for reliable sensor and actuator connections. This robust and pre-fabricated connector is typically applied in automated systems for efficient and secure data transmission.

Connector 1	M12
Connector 2	M12
Colour	Orange
Length	2m
Type	Sensor connector
Cable Length	2m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.34mm²
Degree of protection (IP)	IP65
Diameter	1.05mm
Halogen free	true
Industrial packaging	Yes
Material	PUR
Material contact body	CuSn
Material of cable sheath	Other
Material of contact surface	Other
Misc Attribute	SAC-3P-M12MS/ 2,0-150/M12FR-2L
Nominal Current	4A
Nominal Voltage	24V
Number of Poles	3
Permitted cable outer temperature after assembling without vibration	-50 - 105°C
Permitted cable outer temperature during assembling/handling	-40 - 105°C
Positioning cable feed, box-sided	Angled
Positioning cable feed, field-sided	Straight
Rated current In	4A
Rated voltage	24V
Screened	false
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	M12
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	Male (plug)
Vulcanized	false
With LED indication	false
