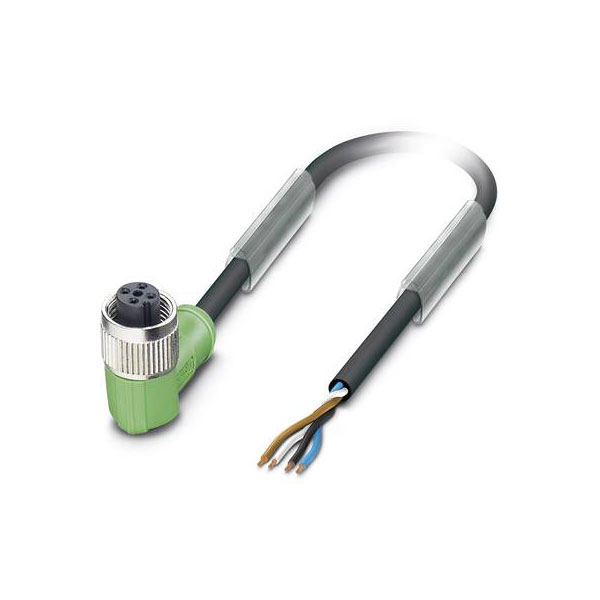

Phoenix Contact 1545001 Sensor/Actuator Cable 20m Angled M12 A-Coded

Phoenix Contact manufactures the SAC-4P-20,0-PUR/M12FR 1545001, a robust sensor/actuator cable ideal for industrial automation. This product features an angled M12-Socket and a free cable end, providing flexibility and reliability in its applications. Typically used in sensor and actuator connections, its durable PUR jacket ensures excellent performance in demanding environments.

Connector 1	Cable, open end
Connector 2	M12
Colour	Black
Length	20m
Type	Sensor connector
Cable Length	20m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Connection	Open end cable
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.34mm²
Degree of protection (IP)	IP65
Diameter	1.27mm
Halogen free	true
Industrial packaging	Yes
Material	PUR
Material contact body	CuSn
Material of cable sheath	Other
Material of contact surface	Other
Misc Attribute	SAC-4P-20,0-PUR/M12FR
Nominal Current	4A
Number of Poles	4
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-25 - 80°C
Positioning cable feed, box-sided	Angled
Positioning cable feed, field-sided	Other
Rated current In	4A
Rated voltage	250V
Screened	false
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	Other
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	N/A
Vulcanized	false
With LED indication	false
