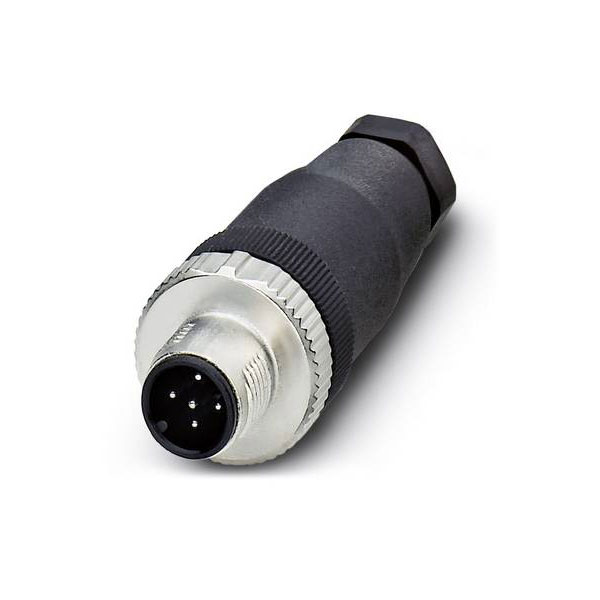

Phoenix Contact 1542965 SACC Plug 5-Pos M12 Straight Male A-Coded Metal

The plug-in connector SACC-MS-5CON-PG 7-M SCO by Phoenix Contact is a sensor/actuator connector designed for secure and reliable electrical connections. This compact connector is notable for its robust construction, making it suitable for harsh industrial environments. Typically used in automation technology, it enables efficient signal transmission between sensors and control systems.

Connector 1	M12
Connector 2	Customisable
Colour	Multicolour
Type	Sensor connector
Ambient temperature	-40 - 85°C
Coating housing	Other
Coding	A
Conductor Cross Section	0.75mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 0.75mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.25 - 0.75mm²
Connectable conductor cross section multi-wired	0.25 - 0.75mm²
Connectable conductor cross section solid-core	0.25 - 0.75mm²
Connection	Screw terminal
Contact Type	Other
Degree of protection (IP), mounted	IP67
Diameter connector	N/Amm
For cable outer diameter	- - -mm
Housing Material	Other
Inflammability class of insulation material according to UL94	HB
Material of contact surface	Other
Material thread ring	Other
Min. number of insertion cycles	100
Misc Attribute	SACC-MS-5CON-PG 7-M SCO
Nominal Current	4A
Number of control contacts	5
Number of data contacts	0
Number of power contacts	0
Overvoltage category	II
Pollution degree	3
Rated current In	4A
Rated voltage	48V
Screened	false
Thread size M	N/A
Thread Type	M12
Type of electric connection	Screw connection
Type of housing	Straight
Type of locking	Other
With protective conductor	false
With status indication	false
