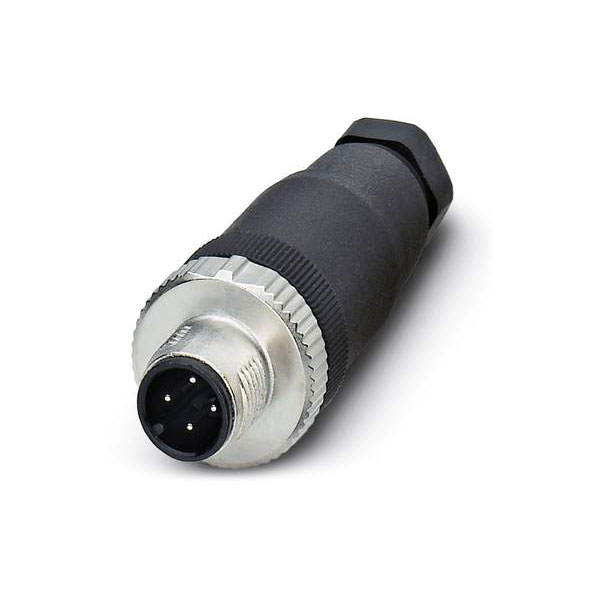

Phoenix Contact 1542952 SACC Plug Male M12 4-pos. A-coded Pg7 Screw

The Phoenix Contact Plug-in connector SACC-MS-4CON-PG 7-M SCO 1542952 is a sensor/actuator connector known for its reliable performance. It features a robust design suited for secure connections in industrial environments. This connector is typically used in automation systems and sensor applications.

Type	Sensor connector
Number of Contacts	4
Connector Size	M12
Gender	Plug
Ambient temperature	-40 - 85°C
Coating housing	Other
Coding	A
Conductor Cross Section	0.75mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 0.75mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.25 - 0.75mm²
Connectable conductor cross section multi-wired	0.25 - 0.75mm²
Connectable conductor cross section solid-core	0.25 - 0.75mm²
Connection	Screw terminal
Connector 1	M12 plug, straight
Connector 2	Customisable
Contact Type	Other
Degree of protection (IP), mounted	IP67
Diameter connector	N/Amm
For cable outer diameter	- - -mm
Housing Material	Other
Inflammability class of insulation material according to UL94	HB
IP Rating	IP67
Material of contact surface	Other
Material thread ring	Other
Min. number of insertion cycles	100
Misc Attribute	SACC-MS-4CON-PG 7-M SCO
Nominal Current	4A
Number of control contacts	4
Number of data contacts	0
Number of power contacts	0
Overvoltage category	II
Pollution degree	3
Rated current In	4A
Rated voltage	250V
Screened	false
Thread size M	N/A
Thread Type	M12
Type of electric connection	Screw connection
Type of housing	Straight
Type of locking	Other
With protective conductor	false
With status indication	false
