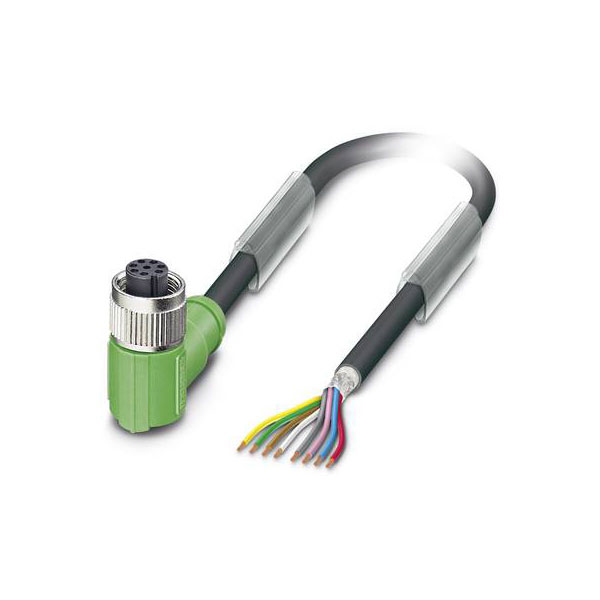

Phoenix Contact 1522930 SAC Cable 8P 5m PUR M12 Angled A-Coded Shielded

The Phoenix Contact Sensor/Actuator cable SAC-8P-5,0-PUR/M12FR SH 1522930 is an 8-pin, 5-metre long connector cable designed for reliable data and power transmission. Featuring a durable PUR jacket, it is suitable for industrial environments and automation applications. The pre-fabricated connector ensures secure and efficient connections in sensor and actuator systems.

Connector 1	Cable, open end
Connector 2	M12
Colour	Black
Length	5m
Type	Sensor connector
Cable Length	5m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Connection	Open end cable
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.25mm²
Degree of protection (IP)	IP65
Diameter	1.17mm
Halogen free	true
Material	PUR
Material contact body	CuZn
Material of cable sheath	Other
Material of contact surface	Other
Misc Attribute	SAC-8P- 5,0-PUR/M12FR SH
Nominal Current	2A
Number of Poles	8
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-25 - 80°C
Positioning cable feed, box-sided	Angled
Positioning cable feed, field-sided	Other
Rated current In	2A
Rated voltage	30V
Screened	true
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	Other
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	N/A
Vulcanized	false
With LED indication	false
