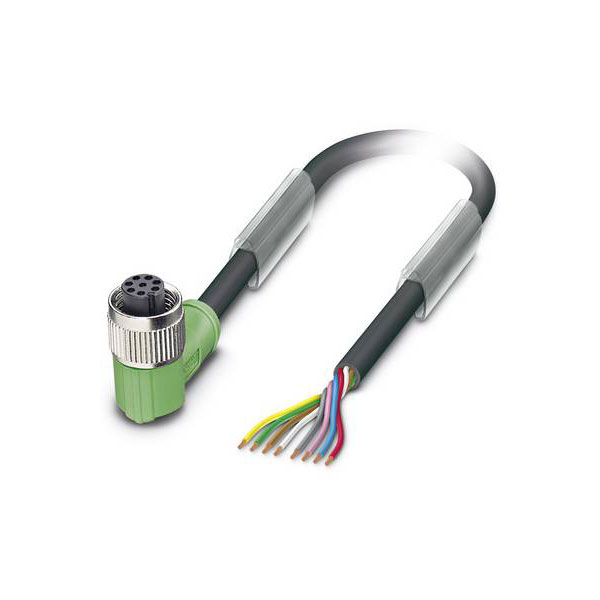

Phoenix Contact 1522639 Sensor/Actuator Cable 8P A-Coded 3m Black-Grey

The Phoenix Contact Sensor/Actuator cable, model SAC-8P-3,0-PUR/M12FR 1522639, is a robust and pre-fabricated connector designed for reliable transmission in automation systems. Its durable PUR sheath and M12 right-angled plug ensure high performance in industrial environments. This cable is ideal for connecting sensors and actuators in manufacturing and process automation applications.

Connector 1	Cable, open end
Connector 2	M12
Colour	Black
Length	3m
Type	Sensor connector
Cable Length	3m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Connection	Open end cable
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.25mm²
Degree of protection (IP)	IP65
Diameter	1.17mm
Halogen free	true
IP Rating	IP65
Material	PUR
Material contact body	CuZn
Material of cable sheath	Other
Material of contact surface	Other
Misc Attribute	SAC-8P- 3,0-PUR/M12FR
Nominal Current	2A
Number of Poles	8
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-25 - 80°C
Positioning cable feed, box-sided	Angled
Positioning cable feed, field-sided	Other
Rated current In	2A
Rated voltage	30V
Screened	false
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	Other
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	N/A
Vulcanized	false
With LED indication	false
