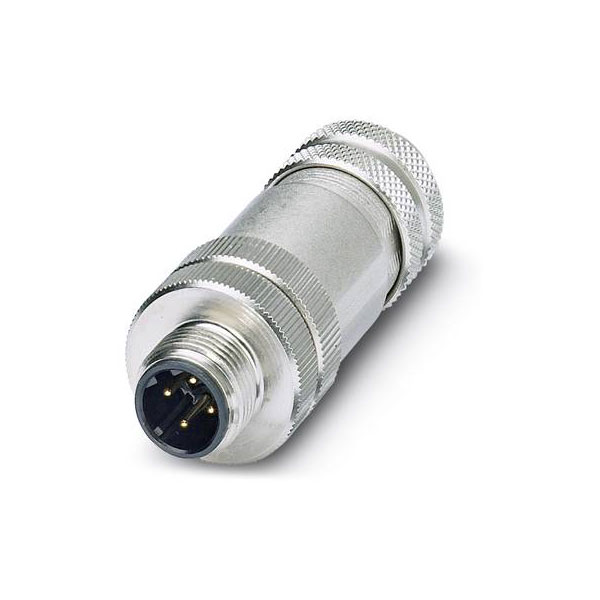

Phoenix Contact 1521258 SACC M12 4-Pos Male Plug Shielded Screw Metal

The SACC-M12MSD-4CON-PG 7-SH 1521258 from Phoenix Contact is a robust plug-in connector designed for sensor and actuator applications. With its durable construction and reliable connectivity, it is suitable for use in automated systems and machinery. This connector supports efficient data transmission and secure connections in harsh industrial environments.

Type	Bus connector
Number of Contacts	4
Connector Size	M12
Gender	Plug
Ambient temperature	-40 - 85°C
Coating housing	Other
Coding	D
Conductor Cross Section	0.75mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 0.75mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.25 - 0.75mm²
Connectable conductor cross section multi-wired	0.25 - 0.75mm²
Connectable conductor cross section solid-core	0.25 - 0.75mm²
Connection	Screw terminal
Connector 1	M12 plug, straight
Connector 2	Customisable
Contact Type	Other
Degree of protection (IP), mounted	IP67
Diameter connector	20mm
For cable outer diameter	- - -mm
Housing Material	Brass
Inflammability class of insulation material according to UL94	HB
IP Rating	IP67
Material of contact surface	Gold
Material thread ring	Other
Max. temperature	+85°C
Min. number of insertion cycles	100
Min. temperature	-40°C
Misc Attribute	SACC-M12MSD-4CON-PG 7-SH
Nominal Current	4A
Nominal Voltage	60V DC
Number of control contacts	4
Number of data contacts	0
Number of power contacts	0
Overvoltage category	II
Pollution degree	3
Rated current In	4A
Rated voltage	48V
Screened	true
Thread size M	N/A
Thread Type	M12
Type of electric connection	Screw connection
Type of housing	Straight
Type of locking	Other
With protective conductor	false
With status indication	false
