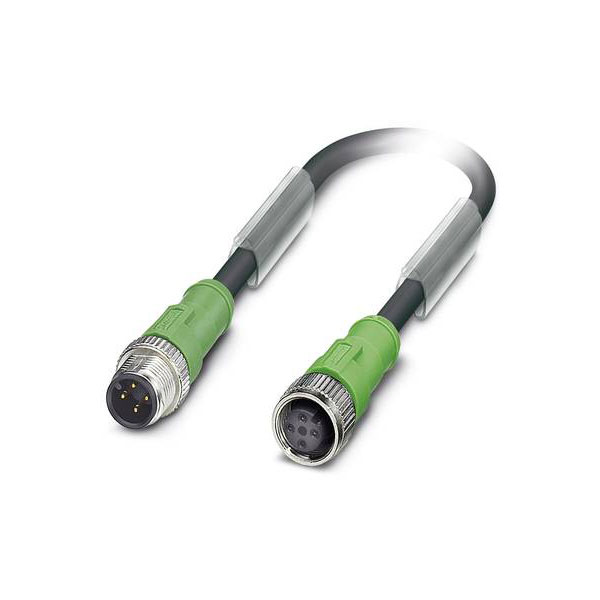

Phoenix Contact 1509539 Sensor/Actuator Cable 4P A-Coded 0.5m Black-Gray

Phoenix Contact manufactures the SAC-4P-M12MS/0,5-186/M12FS sensor/actuator cable. This product features an M12 plug and socket, ideal for industrial sensor and actuator interfacing. It is commonly used in automation systems for reliable signal and power transmission.

Connector 1	M12
Connector 2	M12
Colour	Black
Length	0.5m
Type	Sensor connector
Cable Length	0.5m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.75mm²
Degree of protection (IP)	IP65
Diameter	1.75mm
Halogen free	true
Industrial packaging	Yes
Material	PUR
Material contact body	CuSn
Material of cable sheath	Other
Material of contact surface	Other
Misc Attribute	SAC-4P-M12MS/ 0,5-186/M12FS
Nominal Current	4A
Number of Poles	4
Permitted cable outer temperature after assembling without vibration	-25 - 80°C
Permitted cable outer temperature during assembling/handling	-5 - 80°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Straight
Rated current In	4A
Rated voltage	250V
Screened	false
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	M12
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	Male (plug)
Vulcanized	false
With LED indication	false
