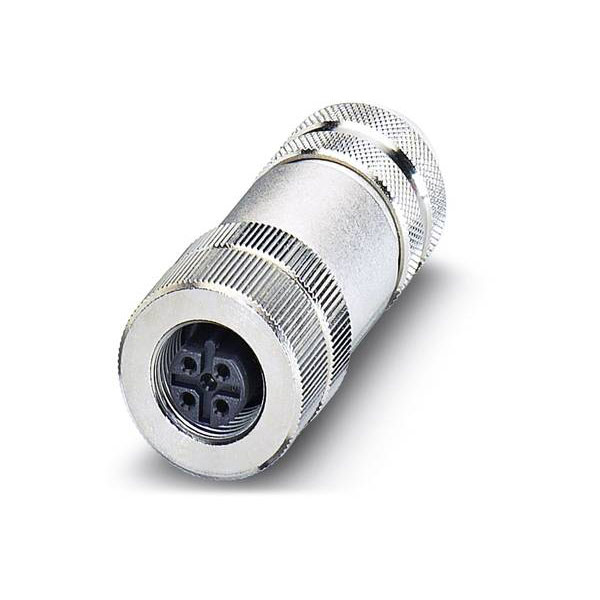

The connector, manufactured by Phoenix Contact, features a robust design suitable for sensor and actuator data connections. It includes a five-pin configuration with gold-plated contacts, ensuring reliable signal transmission. Typically used in industrial automation systems, the connector supports efficient connectivity in bus systems.
| Connector 1 |
M12 |
| Connector 2 |
Customisable |
| Colour |
Multicolour |
| Type |
Sensor connector |
| Ambient temperature |
-40 - 85°C |
| Coating housing |
Other |
| Coding |
B |
| Conductor Cross Section |
0.75mm² |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.25 - 0.75mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.25 - 0.75mm² |
| Connectable conductor cross section multi-wired |
0.25 - 0.75mm² |
| Connectable conductor cross section solid-core |
0.25 - 0.75mm² |
| Connection |
Screw terminal |
| Contact Type |
Other |
| Degree of protection (IP), mounted |
IP67 |
| Diameter connector |
20mm |
| For cable outer diameter |
- - -mm |
| Housing Material |
Other |
| Inflammability class of insulation material according to UL94 |
HB |
| Material of contact surface |
Gold |
| Material thread ring |
Other |
| Min. number of insertion cycles |
100 |
| Misc Attribute |
SACC-M12FSB-5CON-PG9 SH AU |
| Nominal Current |
4A |
| Number of control contacts |
5 |
| Number of data contacts |
0 |
| Number of power contacts |
0 |
| Overvoltage category |
II |
| Pollution degree |
3 |
| Rated current In |
4A |
| Rated voltage |
48V |
| Screened |
true |
| Thread size M |
N/A |
| Thread Type |
M12 |
| Type of electric connection |
Screw connection |
| Type of housing |
Straight |
| Type of locking |
Other |
| With protective conductor |
false |
| With status indication |
false |
