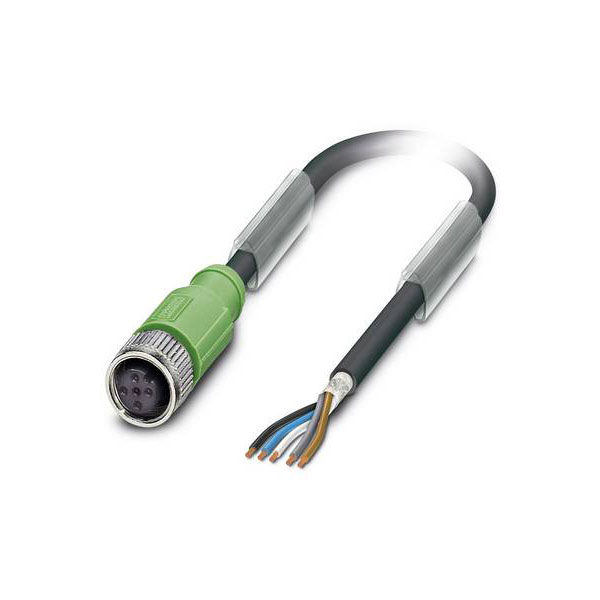

Phoenix Contact 1500758 Sensor/Actuator Cable A-coded M12 5P 10m Shielded

Phoenix Contact's Sensor/Actuator cable SAC-5P-10,0-PUR/M12FS SH is a pre-fabricated connector designed for reliable signal transmission. The cable features a five-pin configuration and is encased in a durable PUR jacket, ideal for industrial environments. It is commonly used in connecting sensors and actuators in automation and control systems.

Connector 1	Cable, open end
Connector 2	M12
Colour	Black
Length	10m
Type	Sensor connector
Cable Length	10m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Connection	Open end cable
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.34mm²
Degree of protection (IP)	IP65
Diameter	1.27mm
Halogen free	true
IP Rating	IP65
Material	PUR
Material contact body	CuSn
Material of cable sheath	Other
Material of contact surface	Other
Misc Attribute	SAC-5P-10,0-PUR/M12FS SH
Nominal Current	4A
Number of Poles	5
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-25 - 80°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Other
Rated current In	4A
Rated voltage	48V
Screened	true
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	Other
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	N/A
Vulcanized	false
With LED indication	false
