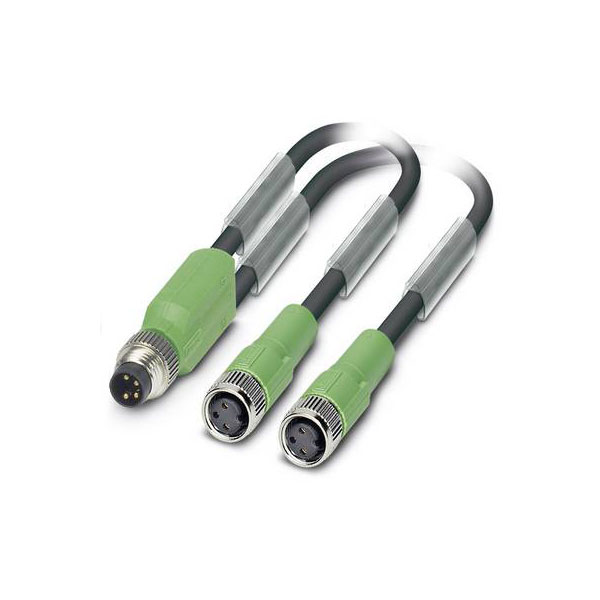

Phoenix Contact 1458664 Sensor/Actuator Cable 3P 0.3m M8 Black-Grey PUR

The Sensor/Actuator cable SAC-3P-M8Y/2X0,3-PUR/M 8FS 1458664 by Phoenix Contact features a PLUSCON Industrial Y-splitter design. It is ideal for sensor-actuator cabling, with pre-fabricated connectors for efficient and reliable connections. Typical applications include industrial automation and control systems, where robust and durable sensor/actuator connectivity is required.

Connector 1	M8
Colour	Black
Length	0.3m
Type	Sensor connector
Cable Length	0.3m
Cable Type	N/A
Coding	A
Colour cable sheath	Other
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.25mm²
Degree of protection (IP)	IP65
Diameter	1.17mm
Halogen free	true
Material	PUR
Material contact body	CuSn
Material of cable sheath	Other
Material of contact surface	N/A
Misc Attribute	SAC-3P-M8Y/2X0,3-PUR/M 8FS
Nominal Current	4A
Number of Poles	3
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-25 - 80°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Straight
Rated current In	N/AA
Rated voltage	48V
Screened	false
Thread Type	M8
Type of electrical connection, box-sided	M8
Type of electrical connection, field-sided	M8
Type of plug-in contact, box-sided	Female (bus)
Type of plug-in contact, field sided	Male (plug)
Vulcanized	false
With LED indication	false
