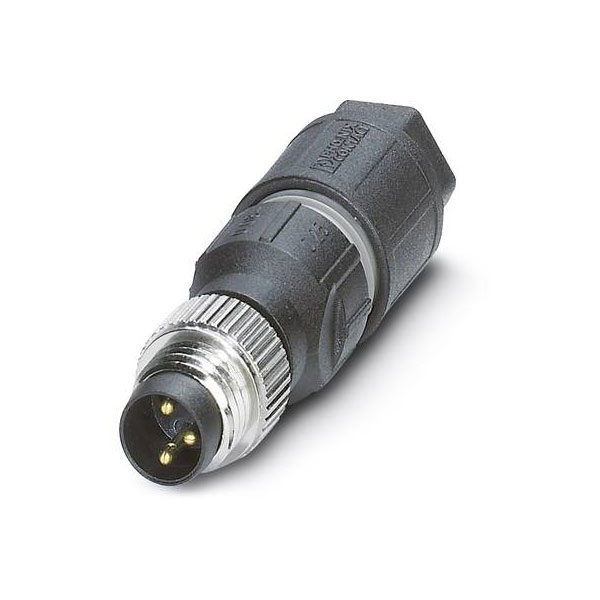

Phoenix Contact manufactures the plug-in connector SACC-M 8MS-3QO-0,5-M, part number 1441024. This sensor/actuator connector features a robust design suitable for industrial automation tasks. It is commonly used in machinery and control systems to facilitate reliable signal and power transmission.
| Connector 1 |
M8 |
| Connector 2 |
Customisable |
| Colour |
Multicolour |
| Type |
Sensor connector |
| Ambient temperature |
-25 - 80°C |
| Coating housing |
Other |
| Coding |
A |
| Conductor Cross Section |
0.50mm² |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.25 - 0.5mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.25 - 0.5mm² |
| Connectable conductor cross section multi-wired |
0.25 - 0.5mm² |
| Connectable conductor cross section solid-core |
0.25 - 0.5mm² |
| Connection |
Cut & Clip |
| Contact Type |
Other |
| Degree of protection (IP), mounted |
IP67 |
| Diameter |
1.55mm |
| Diameter connector |
12.5mm |
| For cable outer diameter |
2.5 - 5mm |
| Housing Material |
Plastic |
| Inflammability class of insulation material according to UL94 |
HB |
| IP Rating |
IP65, IP67 |
| Material of contact surface |
Nickel |
| Material thread ring |
Other |
| Min. number of insertion cycles |
100 |
| Misc Attribute |
SACC-M 8MS-3QO-0,5-M |
| Nominal Current |
4A |
| Number of control contacts |
3 |
| Number of data contacts |
0 |
| Number of power contacts |
0 |
| Overvoltage category |
II |
| Pollution degree |
3 |
| Rated current In |
4A |
| Rated voltage |
48V |
| Screened |
false |
| Thread size M |
N/A |
| Thread Type |
M8 |
| Type of electric connection |
Insulation displacement connection |
| Type of housing |
Straight |
| Type of locking |
Other |
| Weight |
0 |
| With protective conductor |
false |
| With status indication |
false |
