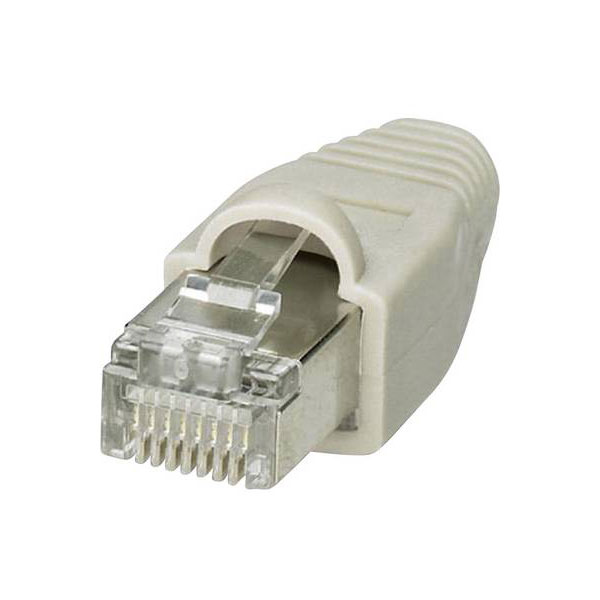

Phoenix Contact 1416965 Sensor/Actuator Cable RJ45 CAT5e 8-Pin Shielded

Phoenix Contact 1416965 is a sensor/actuator data cable with a straight plug design, suitable for efficient signal transmission. Manufactured by Phoenix Contact, it features robust construction for reliable performance in industrial settings. This cable is typically used in applications requiring secure and stable connections for sensors and actuators.

Connector 1	RJ45
Connector 2	Customisable
Type	Sensor connector
Ambient temperature	-40 - 85°C
Coating housing	N/A
Connectable conductor cross section fine-strand with cable end sleeve	- - -mm²
Connectable conductor cross section fine-strand without cable end sleeve	- - -mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	0.14 - 0.22mm²
Contact Type	N/A
Degree of protection (IP), mounted	IP20
Depth	21.5mm
EMC-version	N/A
Height	7.9mm
Housing Material	Plastic
Impact strength	N/A
Inflammability class of insulation material according to UL94	V2
Material contact	Other
Material insulation body	Other
Material of contact surface	N/A
Misc Attribute	VS-08-NP-RJ45-GY
Mounting method	N/A
Number of conduit inlets	N/A
Number of plug-in contact rows	N/A
Number of Poles	8
Operating Temperature	-40 - 85°C
Overvoltage category	II
Pollution degree	N/A
Position cable feed	N/A
Rated current In	2A
Rated Surge Voltage	N/AkV
Rated voltage	72V
Type of electric connection	N/A
Type of locking	Other
Width	11.7mm
With protective conductor	false
With sealing	false
