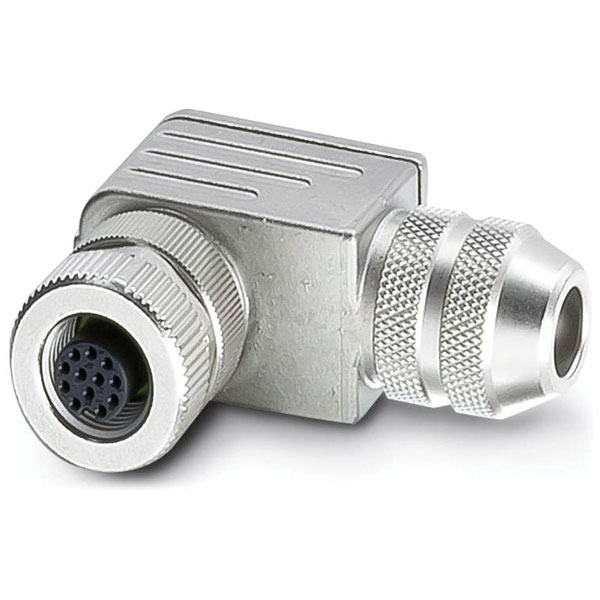

Phoenix Contact 1404644 SACC-M12FST Connector 4-Pos T-Coded Pg11 Zinc

Phoenix Contact manufactures the Plug-in connector SACC-M12FST-3PECON-PG11-M 1404644, part of the PLUSCON Industrial plug line. This M12 plug/socket features secure and robust sensor/actuator connections, ideal for industrial automation applications. It's commonly used in sensor and actuator cabling within complex machinery and control systems.

Connector 1	M12
Connector 2	Customisable
Colour	Multicolour
Type	Sensor connector
Ambient temperature	-40 - 85°C
Coating housing	Other
Coding	T
Conductor Cross Section	1.50mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.75 - 1.5mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.75 - 1.5mm²
Connectable conductor cross section multi-wired	0.75 - 1.5mm²
Connectable conductor cross section solid-core	0.75 - 1.5mm²
Connection	Screw terminal
Contact Type	Other
Degree of protection (IP), mounted	IP67
Diameter connector	20.913281mm
For cable outer diameter	- - -mm
Housing Material	Plastic
Inflammability class of insulation material according to UL94	V0
Material of contact surface	Gold
Material thread ring	Other
Min. number of insertion cycles	100
Misc Attribute	SACC-M12FST-3PECON-PG11-M
Nominal Current	4A
Nominal Voltage	63V DC
Number of control contacts	4
Number of data contacts	0
Number of power contacts	0
Overvoltage category	III
Pollution degree	3
Rated current In	12A
Rated voltage	63V
Screened	false
Thread size M	N/A
Thread Type	M12
Type of electric connection	Screw connection
Type of housing	Straight
Type of locking	Other
With protective conductor	false
With status indication	false
