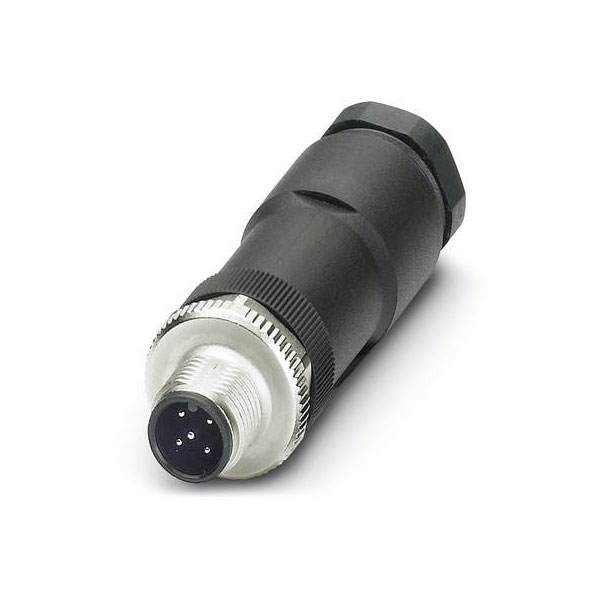

Phoenix Contact 1404417 Plug-in Connector M12 5-Pos Zinc Nickel-Plated

Phoenix Contact manufactures the Plug-in connector SACC-M12MS-5CON-PG11-M PWR 1404417, which is a robust M12 Speedcon receptacle plug/socket. It features a secure and quick connection system suitable for sensor and actuator cabling in industrial environments. This connector is typically used in automation systems where reliable and efficient connections are essential.

Connector 1	M12
Connector 2	Customisable
Colour	Multicolour
Type	Sensor connector
Ambient temperature	-40 - 85°C
Coating housing	Other
Coding	A
Conductor Cross Section	1.50mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.75 - 1.5mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.75 - 1.5mm²
Connectable conductor cross section multi-wired	0.75 - 1.5mm²
Connectable conductor cross section solid-core	0.75 - 1.5mm²
Connection	Screw terminal
Contact Type	Other
Degree of protection (IP), mounted	IP67
Diameter connector	20.2mm
For cable outer diameter	- - -mm
Housing Material	Plastic
Inflammability class of insulation material according to UL94	V0
Material of contact surface	Nickel
Material thread ring	Other
Min. number of insertion cycles	100
Misc Attribute	SACC-M12MS-5CON-PG11-M PWR
Nominal Current	8A
Nominal Voltage	60V DC
Number of control contacts	5
Number of data contacts	0
Number of power contacts	0
Overvoltage category	II
Pollution degree	3
Rated current In	8A
Rated voltage	48V
Screened	false
Thread size M	N/A
Thread Type	M12
Type of electric connection	Screw connection
Type of housing	Straight
Type of locking	Other
With protective conductor	false
With status indication	false
